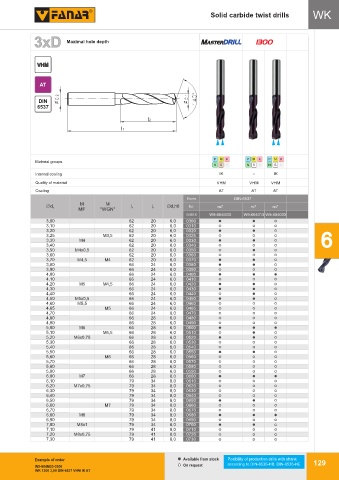

Solid carbide twist drills WK

3xD Maximal hole depth MASTERDRILL 1300

VHM

AT

DIN
6537

P M P K M K P M K P M K
Material groups
N S H N S H N S H N S H
Internal cooling IK IK - IK
Quality of material VHM VHM VHM VHM
Coating AT AT AT AT
Nakrój / Chamfer Norm DIN-6537
M M
Ćd 1 l 1 l 2 Ćd h6 Tol. m7 m7 m7
MF "WGN" 2
INDEX W9-604M33 W9-604013 W9-604033
3,00 62 20 6,0 0300
3,10 62 20 6,0 0310
3,20 62 20 6,0 0320
3,25 M3,5 62 20 6,0 0325
3,30 M4 62 20 6,0 0330 6 6
3,40 62 20 6,0 0340
3,50 M4x0,5 62 20 6,0 0350
3,60 62 20 6,0 0360
3,70 M4,5 M4 62 20 6,0 0370
3,80 66 24 6,0 0380
3,90 66 24 6,0 0390
4,00 66 24 6,0 0400 7
4,10 66 24 6,0 0410
4,20 M5 M4,5 66 24 6,0 0420
4,30 66 24 6,0 0430
4,40 66 24 6,0 0440
4,50 M5x0,5 66 24 6,0 0450
4,60 M5,5 66 24 6,0 0460
4,65 M5 66 24 6,0 0465
4,70 66 24 6,0 0470
4,80 66 28 6,0 0480
4,90 66 28 6,0 0490
5,00 M6 66 28 6,0 0500
5,10 M5,5 66 28 6,0 0510
5,20 M6x0,75 66 28 6,0 0520
5,30 66 28 6,0 0530
5,40 66 28 6,0 0540
5,50 66 28 6,0 0550
5,60 M6 66 28 6,0 0560
5,70 66 28 6,0 0570
5,80 66 28 6,0 0580
5,90 66 28 6,0 0590
6,00 M7 66 28 6,0 0600
6,10 79 34 8,0 0610
6,20 M7x0,75 79 34 8,0 0620
6,30 79 34 8,0 0630
6,40 79 34 8,0 0640
6,50 79 34 8,0 0650
6,60 M7 79 34 8,0 0660
6,70 79 34 8,0 0670
6,80 M8 79 34 8,0 0680
6,90 79 34 8,0 0690
7,00 M8x1 79 34 8,0 0700
7,10 79 41 8,0 0710
7,20 M8x0,75 79 41 8,0 0720
7,30 79 41 8,0 0730

Example of order Available from stock Posibility of production drills with shank 129
W9-604M33-0300 On request according to DIN-6535-HB, DIN-6535-HE
WK 1300 3,00 DIN-6537 VHM IK AT
