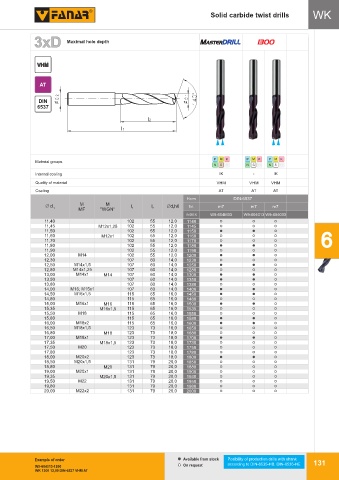

Solid carbide twist drills WK

3xD Maximal hole depth MASTERDRILL 1300

VHM

AT

DIN
6537

P M P K M K P M K P M K
Material groups
N S H N S H N S H N S H
Internal cooling IK IK IK - IK
Quality of material VHM VHM VHM VHM VHM
Coating AT AT TA AT AT
Nakrój / Chamfer Norm DIN-6537
Ć d M M l 1 l 2 Ćd h6 Tol. m7 m7 m7
1 MF "WGN" 2
INDEX W9-604M33 W9-604013 W9-604033

11,40 102 55 12,0 1140
11,45 M12x1,25 102 55 12,0 1145
11,50 102 55 12,0 1150
11,60 M12x1 102 55 12,0 1160
11,70 102 55 12,0 1170 6 6
11,80 102 55 12,0 1180
11,90 102 55 12,0 1190
12,00 M14 102 55 12,0 1200
12,30 107 60 14,0 1230
12,50 M14x1,5 107 60 14,0 1250
12,80 M14x1,25 107 60 14,0 1280
13,00 M14x1 M14 107 60 14,0 1300 7
13,50 107 60 14,0 1350
13,80 107 60 14,0 1380
14,00 M16; M15x1 107 60 14,0 1400
14,50 M16x1,5 115 65 16,0 1450
14,80 115 65 16,0 1480
15,00 M16x1 M16 115 65 16,0 1500
15,35 M16x1,5 115 65 16,0 1535
15,50 M18 115 65 16,0 1550
15,80 115 65 16,0 1580
16,00 M18x2 115 65 16,0 1600
16,50 M18x1,5 123 73 18,0 1650
16,80 M18 123 73 18,0 1680
17,00 M18x1 123 73 18,0 1700
17,35 M18x1,5 123 73 18,0 1735
17,50 M20 123 73 18,0 1750
17,80 123 73 18,0 1780
18,00 M20x2 123 73 18,0 1800
18,50 M20x1,5 131 79 20,0 1850
18,80 M20 131 79 20,0 1880
19,00 M20x1 131 79 20,0 1900
19,35 M20x1,5 131 79 20,0 1935
19,50 M22 131 79 20,0 1950
19,80 131 79 20,0 1980
20,00 M22x2 131 79 20,0 2000

Example of order Available from stock Posibility of production drills with shank 131
W9-604013-1200 On request according to DIN-6535-HB, DIN-6535-HE
WK 1300 12,00 DIN-6537 VHM AT
