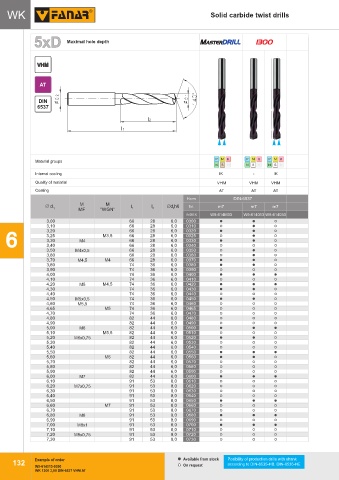

Page 136 - Fanar

WK Solid carbide twist drills

5xD Maximal hole depth MASTERDRILL 1300

VHM

AT

DIN
6537

P P M M K KP M K P M K P M K
Material groups
N N S S H H N S H N S H N S H
Internal cooling IK IK IK - IK
Quality of material VHM VHM VHM VHM
Coating AT TA AT AT
Nakrój / Chamfer Norm DIN-6537
VHM
Ć d M M l 2 Ćd h6 Tol. m7 m7 m7
1 MF "WGN" l 1 2
INDEX W9-614M33 W9-614013 W9-614033

3,00 66 28 6,0 0300
3,10 66 28 6,0 0310
3,20 66 28 6,0 0320
6 3,25 M4 M3,5 66 28 6,0 0325
66
0330
6,0
28
3,30
3,40
3,50 M4x0,5 66 28 6,0 0340
28
6,0
66
0350
3,60 66 28 6,0 0360
3,70 M4,5 M4 66 28 6,0 0370
3,80 74 36 6,0 0380
3,90 74 36 6,0 0390
4,00 74 36 6,0 0400
4,10 74 36 6,0 0410
4,20 M5 M4,5 74 36 6,0 0420
4,30 74 36 6,0 0430
4,40 74 36 6,0 0440
4,50 M5x0,5 74 36 6,0 0450
6,0
36
4,60
0460
74
7 4,65 M5 74 36 6,0 0465
M5,5
74
36
0470
6,0
4,70
4,80 82 44 6,0 0480
4,90 82 44 6,0 0490
5,00 M6 82 44 6,0 0500
5,10 M5,5 82 44 6,0 0510
5,20 M6x0,75 82 44 6,0 0520
5,30 82 44 6,0 0530
5,40 82 44 6,0 0540
5,50 82 44 6,0 0550
5,60 M6 82 44 6,0 0560
5,70 82 44 6,0 0570
5,80 82 44 6,0 0580
5,90 82 44 6,0 0590
6,00 M7 82 44 6,0 0600
6,10 91 53 8,0 0610
6,20 M7x0,75 91 53 8,0 0620
6,30 91 53 8,0 0630
6,40 91 53 8,0 0640
6,50 91 53 8,0 0650
6,60 M7 91 53 8,0 0660
6,70 91 53 8,0 0670
6,80 M8 91 53 8,0 0680
6,90 91 53 8,0 0690
7,00 M8x1 91 53 8,0 0700
7,10 91 53 8,0 0710
7,20 M8x0,75 91 53 8,0 0720
7,30 91 53 8,0 0730
Example of order Available from stock Posibility of production drills with shank
132 according to DIN-6535-HB, DIN-6535-HE
W9-614013-0300 On request
WK 1300 3,00 DIN-6537 VHM AT
