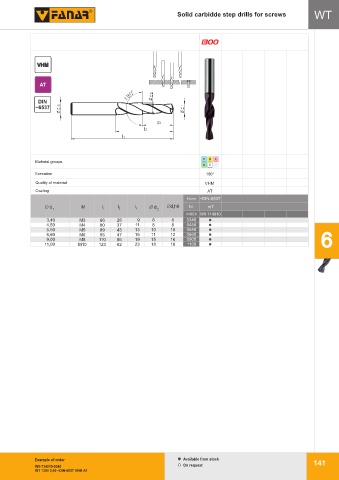

Solid carbidde step drills for screws WKWT

1300

VHM

AT

DIN
~6537

P M K
Material groups
N S H
Execution 180°
IK
Internal cooling
Quality of material VHM
Coating AT
Nakrój / Chamfer Norm ~DIN-6537
Ć d M l 1 l 2 l 3 Ć d Ćd h6 Tol. m7
2
1 2
INDEX W9-714010
3,40 M3 66 28 9 6 6 0340
4,50 M4 80 37 11 8 8 0450
5,50 M5 89 43 13 10 10 0550
6,60 M6 95 47 15 11 12 0660
9,00 M8 110 56 19 15 16 0900 6 6
11,00 M10 123 62 23 18 18 1100

7

Example of order Available from stock 141
W9-714010-0340 On request
WT 1300 3,40 ~DIN-6537 VHM AT
