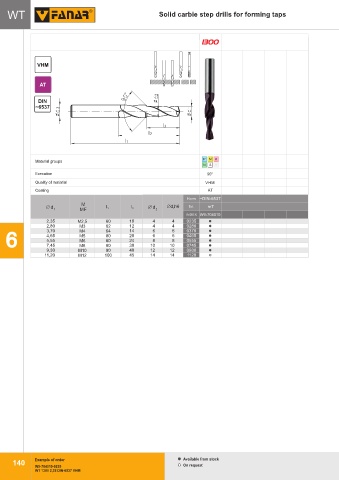

WK Solid carbie step drills for forming taps
WT

1300

VHM

AT

DIN
~6537

P P M M K K
Material groups
N N S S H H
IK
Execution 90°
Internal cooling
Quality of material VHM
Coating AT
Nakrój / Chamfer Norm ~DIN-6537
VHM
M
Ć d l 1 l 3 Ć d Ćd h6 Tol. m7
2
1 MF 2
INDEX W9-704010

2,35 M2,5 60 10 4 4 0235
2,80 M3 62 12 4 4 0280
3,70 M4 64 14 6 6 0370
6 4,65 M5 80 20 6 8 6 0465
24
0555
8
80
M6
5,55
7,45
M8
90
0930
9,30 M10 80 30 10 10 0745
12
12
40
11,20 M12 100 45 14 14 1120
7

Example of order Available from stock
140
W9-704010-0235 On request
WT 1300 2,35 DIN-6537 VHM
