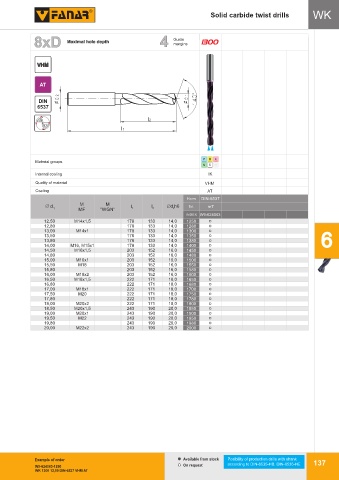

Page 141 - Fanar

Solid carbide twist drills WK

8xD Maximal hole depth 4 Guide 1300
margins

VHM

AT

DIN
6537

P M K
Material groups
N S H
Internal cooling IK
Quality of material VHM
Coating AT
Nakrój / Chamfer Norm DIN-6537
Ć d M M l 2 Ćd h6 Tol. m7
1 MF "WGN" l 1 2
INDEX W9-624063

12,50 M14x1,5 178 133 14,0 1250
12,80 178 133 14,0 1280
13,00 M14x1 178 133 14,0 1300
13,50 178 133 14,0 1350
13,80 178 133 14,0 1380 6 6
14,00 M16, M15x1 178 133 14,0 1400
14,50 M16x1,5 203 152 16,0 1450
14,80 203 152 16,0 1480
15,00 M16x1 203 152 16,0 1500
15,50 M18 203 152 16,0 1550
15,80 203 152 16,0 1580
16,00 M18x2 203 152 16,0 1600 7
16,50 M18x1,5 222 171 18,0 1650
16,80 222 171 18,0 1680
17,00 M18x1 222 171 18,0 1700
17,50 M20 222 171 18,0 1750
17,80 222 171 18,0 1780
18,00 M20x2 222 171 18,0 1800
18,50 M20x1,5 243 190 20,0 1850
19,00 M20x1 243 190 20,0 1900
19,50 M22 243 190 20,0 1950
19,80 243 190 20,0 1980
20,00 M22x2 243 190 20,0 2000

Example of order Available from stock Posibility of production drills with shank 137
W9-624063-1250 On request according to DIN-6535-HB, DIN-6535-HE
WK 1300 12,50 DIN-6537 VHM AT
