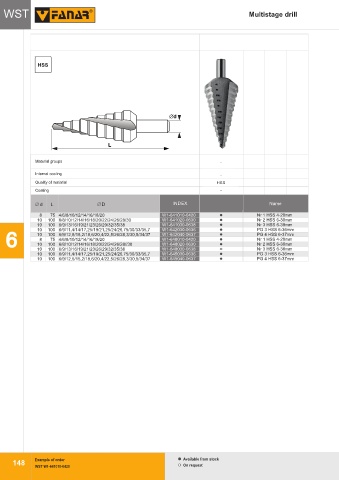

WST Multistage drill
WK

HSS

P P M M K K
Material groups -
N N S S H H
Internal cooling IK -
Quality of material HSS
Coating -
Nakrój / Chamfer VHM
Ć d L L ĆD INDEX Name

8 Tolerancja W1-641010-0420 Nr 1 HSS 4-20mm
4/6/8/10/12/14/16/18/20
75
10 100 6/8/10/12/14/16/18/20/22/24/26/28/30 W1-641020-0630 Nr 2 HSS 6-30mm
10 100 6/9/13/16/19/21/23/26/29/32/35/38 W1-641030-0638 Nr 3 HSS 6-38mm
10 100 6/9/11,4/14/17,25/19/21,25/24/26,75/30/33/35,7 W1-642030-0636 PG 3 HSS 6-36mm
6 10 8 100 6/9/12,5/15,2/18,6/20,4/22,5/26/28,3/30,5/34/37 W1-642040-0637 PG 4 HSS 6-37mm
75
Nr 1 HSS 4-20mm
W1-648010-0420
4/6/8/10/12/14/16/18/20
W1-648020-0630
Nr 2 HSS 6-30mm
6/8/10/12/14/16/18/20/22/24/26/28//30
10
100
10 100 6/9/13/16/19/21/23/26/29/32/35/38 W1-648030-0638 Nr 3 HSS 6-38mm
10 100 6/9/11,4/14/17,25/19/21,25/24/26,75/30/33/35,7 W1-645030-0636 PG 3 HSS 6-36mm
10 100 6/9/12,5/15,2/18,6/20,4/22,5/26/28,3/30,5/34/37 W1-645040-0637 PG 4 HSS 6-37mm
7

Example of order Available from stock
148
WST W1-641010-0420 On request
