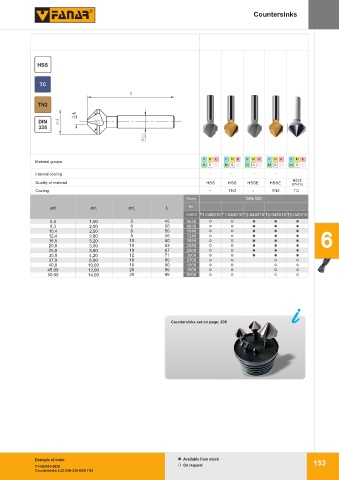

Countersinks WK

HSS

TC
TC

TN2

DIN
335

P M K P M K P P M M K K P M K P M K
Material groups
N S H N S H N N S S H H N S H N S H
Internal cooling IK - - - -
HSSE
Quality of material VHM HSS HSSE HSSE (8%Co)
HSS
Coating AT - TN2 - TN2 TC
Nakrój / Chamfer Norm DIN-335
ød ød 1 ød 2 l 1 Tol.
INDEX T1-040010 T1-043010 T2-040010 T2-043010 T2-045110
6,3 1,50 5 45 0630
8,3 2,00 6 50 0830
10,4 2,50 6 50 1040
12,4 2,80 8 56 1240
16,5 3,20 10 60 1650 6 6
20,5 3,50 10 63 2050
25,0 3,80 10 67 2500
30,0 4,20 12 71 3000
37,0 5,00 16 80 3700
40,0 10,00 16 80 4000
45,00 12,00 20 95 4500
7
50,00 14,00 20 95 5000

Countersinks set on page: 208

Example of order Available from stock 153
T1-043010-0630 On request
Countersinks 6,30 DIN-335 HSS TN 2
