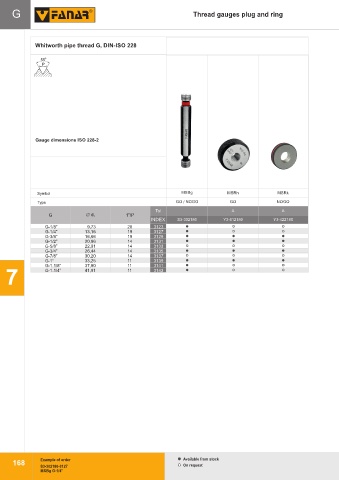

G Thread gauges plug and ring G
G

Whitworth pipe thread G, DIN-ISO 228

55 0
HSSE
H S S E
P
PM
P M

Gauge dimensions ISO 228-2

Symbol MSBg MSRh MSRk
Type GO / NOGO GO NOGO
Tolerance Tol A A
G Ć d 1 1”/P
INDEX S3-302180 Y3-412180 Y3-422180
G-1/8” 9,73 28 3123
G-1/4” 13,16 19 3127
G-3/8” 16,66 19 3129
G-1/2” 20,96 14 3131
G-5/8” 22,91 14 3133
G-3/4” 26,44 14 3135
G-7/8” 30,20 14 3137
G-1” 33,25 11 3139
11
G-1.1/8”
3141
37,90
6 G-1.1/4” 41,91 11 3143
7

Example of order Available from stock
168
S3-302180-3127 On request
MSBg G-1/4”
