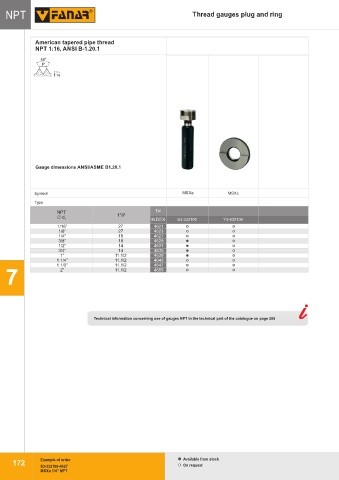

NPT Thread gauges plug and ring

American tapered pipe thread
NPT 1:16, ANSI B-1.20.1

60 0
HSSE
H S S E
P
M
P
PM
1:16

Gauge dimensions ANSI/ASME B1.20.1

Symbol MSXa MSXc
Type
Tolerance NPT Tol
1”/P
Ć d 1 S3-332100 Y3-432100
INDEX
1/16” 27 4621
1/8” 27 4623
1/4” 18 4627
3/8” 18 4629
1/2” 14 4631
3/4” 14 4635
1” 11.1/2 4639
1.1/4” 11.1/2 4643
1.1/2” 11.1/2 4647
6 2” 11.1/2 4655
7

Technical information concerning use of gauges NPT in the technical part of the catalogue on page 295

Example of order Available from stock
172
S3-332100-4627 On request
MSXa 1/4” NPT
