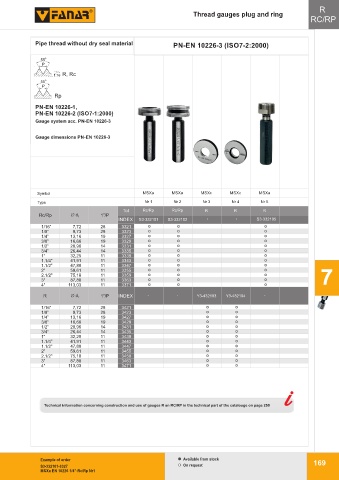

Page 173 - Fanar

R R
Thread gauges plug and ring
Rc/Rp RC/RP

Pipe thread without dry seal material PN-EN 10226-3 (ISO7-2:2000)

55 0
HSSESSE
H P
M
PM
P
R, Rc
1:16
0
55
S
E
HSSE
S
H
P
M
P
PM
Rp
PN-EN 10226-1,
PN-EN 10226-2 (ISO7-1:2000)
Gauge system acc. PN-EN 10226-3
Gauge dimensions PN-EN 10226-3

Symbol MSXa MSXa MSXc MSXc MSXa
Type Nr 1 Nr 2 Nr 3 Nr 4 Nr 5
Tolerance Tol Rc/Rp Rc/Rp R R R
Rc/Rp Ć d 1 1”/P
INDEX S3-332101 S3-332102 - - S3-332105
1/16” 7,72 28 3321
1/8” 9,73 28 3323
1/4” 13,16 19 3327
3/8” 16,66 19 3329
1/2” 20,96 14 3331
3/4” 26,44 14 3335
1” 32,25 11 3339
1.1/4” 41,91 11 3343
1.1/2” 47,80 11 3347
2” 59,61 11 3355 6
2.1/2" 75,18 11 3359 7
3" 87,88 11 3363
4" 113,03 11 3371
R Ć d 1 1”/P INDEX - - Y3-432103 Y3-432104 -

1/16” 7,72 28 3421
1/8” 9,73 28 3423
1/4” 13,16 19 3427
3/8” 16,66 19 3429
1/2” 20,96 14 3431
3/4” 26,44 14 3435
1” 32,25 11 3439
1.1/4” 41,91 11 3443
1.1/2” 47,80 11 3447
2” 59,61 11 3455
2.1/2" 75,18 11 3459
3" 87,88 11 3463
4" 113,03 11 3471

Technical information concerning construction and use of gauges R an RC/RP in the technical part of the catalouge on page 250

Example of order Available from stock 169
S3-332101-3327 On request
MSXa EN 10226 1/4”-Rc/Rp Nr1
