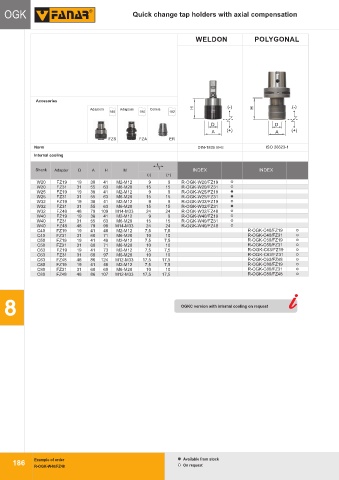

OGK Quick change tap holders with axial compensation

WELDON POLYGONAL

Accesories
Adaptors Adaptors Collets H (-) H (-)
188 190 192
D D
A (+) A (+)
FZS FZA ER
Norm DIN-1835 B+E ISO 26623-1
Internal cooling

Shank Adapter D A H M INDEX INDEX
(-) (+)
W20 FZ19 19 38 41 M2-M12 9 9 R-OGK-W20/FZ19
W20 FZ31 31 55 63 M6-M20 15 15 R-OGK-W20/FZ31
W25 FZ19 19 38 41 M2-M12 9 9 R-OGK-W25/FZ19
W25 FZ31 31 55 63 M6-M20 15 15 R-OGK-W25/FZ31
W32 FZ19 19 38 41 M2-M12 9 9 R-OGK-W32/FZ19
W32 FZ31 31 55 63 M6-M20 15 15 R-OGK-W32/FZ31
W32 FZ48 48 79 109 M14-M33 24 24 R-OGK-W32/FZ48
W40 FZ19 19 38 41 M2-M12 9 9 R-OGK-W40/FZ19
W40 FZ31 31 55 63 M6-M20 15 15 R-OGK-W40/FZ31
W40 FZ48 48 79 98 M14-M33 24 24 R-OGK-W40/FZ48
C40 FZ19 19 41 48 M2-M12 7,5 7,5 R-OGK-C40/FZ19
C40 FZ31 31 60 71 M6-M20 10 10 R-OGK-C40/FZ31
C50 FZ19 19 41 48 M2-M12 7,5 7,5 R-OGK-C50/FZ19
C50 FZ31 31 60 71 M6-M20 10 10 R-OGK-C50/FZ31
C63 FZ19 19 41 73 M2-M12 7,5 7,5 R-OGK-C63/FZ19
C63 FZ31 31 60 97 M6-M20 10 10 R-OGK-C63/FZ31
C63 FZ48 48 86 124 M12-M33 17,5 17,5 R-OGK-C63/FZ48
C80 FZ19 19 41 45 M2-M12 7,5 7,5 R-OGK-C80/FZ19
C80 FZ31 31 60 60 M6-M20 10 10 R-OGK-C80/FZ31
C80 FZ48 48 86 107 M12-M33 17,5 17,5 R-OGK-C80/FZ48

8 OGKC version with internal cooling on request

186 Example of order Available from stock
186
R-OGK-W40/FZ48 On request
