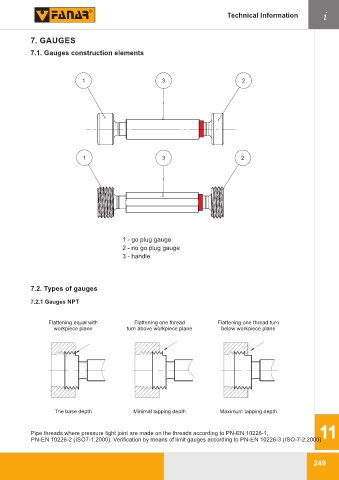

7. GAUGES

7.1. Gauges construction elements

1 3 2

1 3 2

1 - go plug gauge
2 - no go plug gauge
3 - handle

7.2. Types of gauges

7.2.1 Gauges NPT

Flattening equal with Flattening one thread Flattening one thread turn
workpiece plane turn above workpiece plane below workpiece plane

The base depth Minimal tapping depth Maximum tapping depth

11
Pipe threads where pressure tight joint are made on the threads according to PN-EN 10226-1,
PN-EN 10226-2 (ISO7-1:2000). Verification by means of limit gauges according to PN-EN 10226-3 (ISO-7-2:2000)
