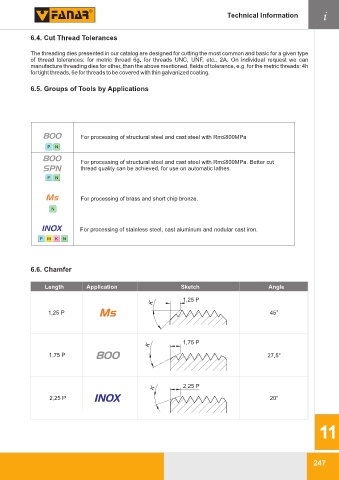

Technical Information i

6.4. Cut Thread Tolerances

The threading dies presented in our catalog are designed for cutting the most common and basic for a given type
of thread tolerances: for metric thread 6g, for threads UNC, UNF, etc., 2A. On individual request we can
manufacture threading dies for other, than the above mentioned, fields of tolerance, e.g. for the metric threads: 4h
for tight threads, 6e for threads to be covered with thin galvanized coating.

6.5. Groups of Tools by Applications

800 For processing of structural steel and cast steel with Rm≤800MPa

P N
800
For processing of structural steel and cast steel with Rm≤800MPa. Better cut
SPN thread quality can be achieved, for use on automatic lathes.

P N

Ms For processing of brass and short chip bronze.

N

INOX For processing of stainless steel, cast aluminum and nodular cast iron.

P M K N

6.6. Chamfer

Length Application Sketch Angle

1,25 P
K
1,25 P Ms 45°

K 1,75 P
1,75 P 800 27,5°

K 2,25 P

2,25 P INOX 20°
