i Technical Information

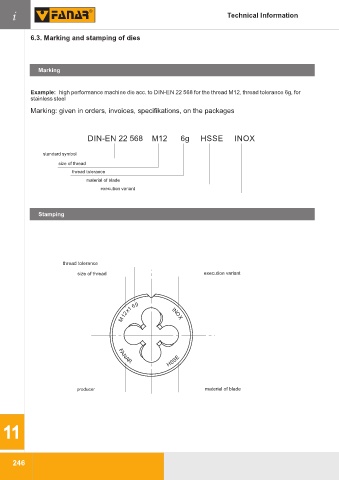

6.3. Marking and stamping of dies

Marking

Example: high performance machine die acc. to DIN-EN 22 568 for the thread M12, thread tolerance 6g, for
stainless steel

Marking: given in orders, invoices, specifikations, on the packages

DIN-EN 22 568 M12 6g HSSE INOX

standard symbol

size of thread
thread tolerance
material of blade
execution variant

Stamping
Cechowanie

thread tolerance

size of thread execution variant

M12x1 6g NI X O

F
E
SS
ANAR
H

producer material of blade
