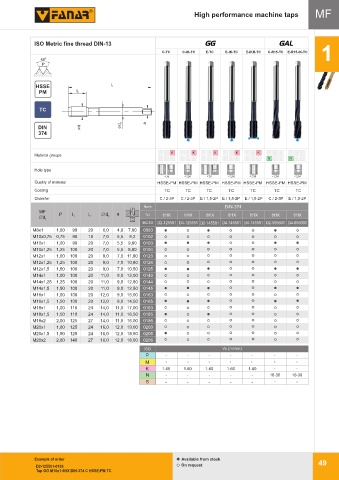

Page 53 - Fanar

MF High performance machine taps MF

ISO Metric fine thread DIN-13 GG GAL
1
C-TC C-IK-TC E-TC E-IK-TC E-IKR-TC C-R15-TC E-R15-IK-TC
60 0
HSSE
H S S E
P
P
M
PM
HSSE l 1
PM l 2

TC
TC

DIN d 1 d 2 a
374

P M K P M K P M K P M K P M K P M K P M K
Material groups
N S H N S H N S H N S H N S H N S H N S H
Hole type
< 2d < 2,5d < 2d < 2,5d < 2,5d < 2,5d < 2,5d
Quality of material HSSE-PM HSSE-PM HSSE-PM HSSE-PM HSSE-PM HSSE-PM HSSE-PM
Coating TC TC TC TC TC TC TC
Chamfer C / 2-3P C / 2-3P E / 1,5-2P E / 1,5-2P E / 1,5-2P C / 2-3P E / 1,5-2P
Norm DIN-374
MF a
l 1
Ćd P Tolerancja l 2 Ćd 2 Tol. 6HX 6HX 6HX 6HX 6HX 6HX 6HX
1
INDEX D2-125501 D4-125551 D2-145501 D4-145551 D4-145561 D2-505601 D4-655601
M8x1 1,00 90 20 6,0 4,9 7,00 0083
M10x0,75 0,75 90 18 7,0 5,5 9,2 0102
M10x1 1,00 90 20 7,0 5,5 9,00 0103
M10x1,25 1,25 100 20 7,0 5,5 8,80 0104
M12x1 1,00 100 20 9,0 7,0 11,00 0123
M12x1,25 1,25 100 20 9,0 7,0 10,80 0124
M12x1,5 1,50 100 20 9,0 7,0 10,50 0125
Tolerancja
M14x1 1,00 100 20 11,0 9,0 13,00 0143
M14x1,25 1,25 100 20 11,0 9,0 12,80 0144
M14x1,5 1,50 100 20 11,0 9,0 12,50 0145
M16x1 1,00 100 20 12,0 9,0 15,00 0163
M16x1,5 1,50 100 20 12,0 9,0 14,50 0165
M18x1 1,00 110 24 14,0 11,0 17,00 0183
M18x1,5 1,50 110 24 14,0 11,0 16,50 0185
M18x2 2,00 125 27 14,0 11,0 16,00 0186
M20x1 1,00 125 24 16,0 12,0 19,00 0203
M20x1,5 1,50 125 24 16,0 12,0 18,50 0205
M20x2 2,00 140 27 16,0 12,0 18,00 0206
ISO Vc (m/min)
P - - - - - - -
M - - - - - - -
K 1-60 1-60 1-60 1-60 1-60 - -
N - - - - - 10-30 10-30
S - - - - - - -

Example of order Available from stock 49
D2-125501-0103 On request
Tap GG M10x1-6HX DIN-374 C HSSE-PM TC
