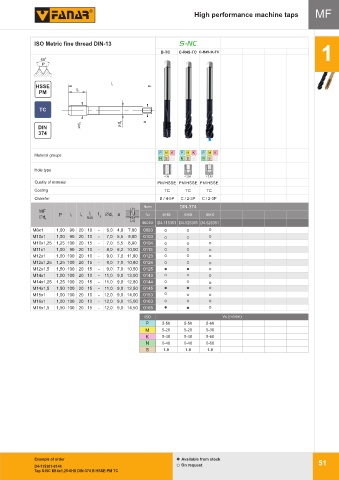

M High performance machine taps MF

ISO Metric fine thread DIN-13 S-NC
1
B-TC C-R45-TC C-R45-IK-TC
60 0
H
HSSE
E
S
S
P
PM
P
M
HSSE l 1
PM l 2
TC
TC
d 1 d 2 a
DIN
374

P M K P M K P M K
Material groups
N S H N S H N S H
Hole type
< 3d < 2,5d < 2,5d
Quality of material PM/HSSE PM/HSSE PM/HSSE
Coating TC TC TC
Chamfer B / 4-5P C / 2-3P C / 2-3P
Norm DIN-374
MF
P l l 2 l a Tol. 6HX 6HX 6HX
Ćd Tolerancja l 21 R45 3 Ćd 2
1
INDEX D4-115301 D4-525301 D4-525351
M8x1 1,00 90 20 10 - 6,0 4,9 7,00 0083
M10x1 1,00 90 20 10 - 7,0 5,5 9,00 0103
M10x1,25 1,25 100 20 15 - 7,0 5,5 8,80 0104
M11x1 1,00 90 20 10 - 8,0 6,2 10,00 0113
M12x1 1,00 100 20 10 - 9,0 7,0 11,00 0123
M12x1,25 1,25 100 20 15 - 9,0 7,0 10,80 0124
M12x1,5 1,50 100 20 15 - 9,0 7,0 10,50 0125
Tolerancja
M14x1 1,00 100 20 10 - 11,0 9,0 13,00 0143
M14x1,25 1,25 100 20 15 - 11,0 9,0 12,80 0144
M14x1,5 1,50 100 20 15 - 11,0 9,0 12,50 0145
M15x1 1,00 100 20 10 - 12,0 9,0 14,00 0153
M16x1 1,00 100 20 10 - 12,0 9,0 15,00 0163
M16x1,5 1,50 100 20 15 - 12,0 9,0 14,50 0165
ISO Vc (m/min)
P 5-50 5-50 5-60
M 5-20 5-20 5-30
K 5-40 5-40 5-60
N 5-40 5-40 5-60
S 1-8 1-8 1-8

Example of order Available from stock 51
D4-115301-0144 On request
Tap S-NC M14x1,25-6HX DIN-374 B HSSE-PM TC
