SECTION 5.0 – ARCHITECTURAL COMPONENTS, MATERIALS AND FINISHES SECTION 5.0 – ARCHITECTURAL COMPONENTS, MATERIALS AND FINISHES

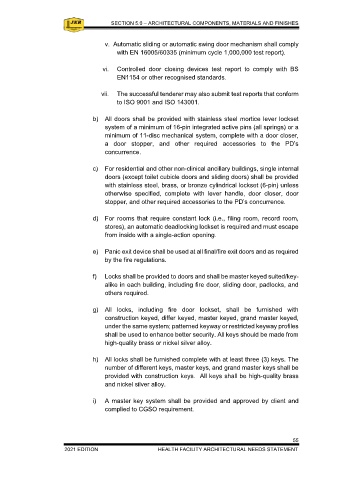

5.11.3 All door sets, door closers, floor springs, and other door hardware v. Automatic sliding or automatic swing door mechanism shall comply
accessories except otherwise specified, including fire-rated doors and with EN 16005/60335 (minimum cycle 1,000,000 test report).
doors’ grille, shall be supplied by one manufacturer. If various
manufacturers are used, the successful tenderer shall coordinate to ensure vi. Controlled door closing devices test report to comply with BS
uniformity. EN1154 or other recognised standards.

5.11.4 The submission of the ironmongeries set shall have been tested and vii. The successful tenderer may also submit test reports that conform
certified by SIRIM or approved equivalent. to ISO 9001 and ISO 143001.

5.11.5 All ironmongeries and accessories installed shall have a warranty during b) All doors shall be provided with stainless steel mortice lever lockset
the Defects Liability Period. Defects in materials and mechanical failure due system of a minimum of 16-pin integrated active pins (all springs) or a
to manufacturing shall be corrected or replaced to the PD’s satisfaction. minimum of 11-disc mechanical system, complete with a door closer,
a door stopper, and other required accessories to the PD’s
5.11.6 All hardware shall be as specified in the door sets. Special consideration concurrence.
shall be taken to coordinate the finish of the various manufacturers to
ensure uniformity. c) For residential and other non-clinical ancillary buildings, single internal
doors (except toilet cubicle doors and sliding doors) shall be provided
5.11.7 Considerations shall be taken in provisions of view panels, closer, and hold- with stainless steel, brass, or bronze cylindrical lockset (6-pin) unless
open facilities, usage of obscure and clear glass, locks, push and pull otherwise specified, complete with lever handle, door closer, door
facilities, etc., required to be used at appropriate locations. stopper, and other required accessories to the PD’s concurrence.

5.11.8 Doors of rooms where required high-security system shall be of electro- d) For rooms that require constant lock (i.e., filing room, record room,
magnetic locking type or approved equivalent. The access control system stores), an automatic deadlocking lockset is required and must escape
shall be of modular system and adaptable for any applications, i.e., from inside with a single-action opening.
magnetic card reader or keypad system (details as per Electrical Works
Brief). The location and height must be appropriately positioned and e) Panic exit device shall be used at all final/fire exit doors and as required
uniform so as not to jeopardise the architectural aesthetic. by the fire regulations.

f) Locks shall be provided to doors and shall be master keyed suited/key-
5.11.9 Lock and Lockset alike in each building, including fire door, sliding door, padlocks, and
others required.
a) All ironmongeries shall comply with SIRIM or any International
Standard such as ANSI/EN as specified below: g) All locks, including fire door lockset, shall be furnished with
construction keyed, differ keyed, master keyed, grand master keyed,
i. For lever handle and knob to comply with BS EN1906: 2010 under the same system; patterned keyway or restricted keyway profiles
(minimum cycle 200,000 test report) or ANSI Grade 3. shall be used to enhance better security. All keys should be made from
high-quality brass or nickel silver alloy.
ii. For mechanically operated locks, latches, and locking plates to
comply with BS EN12209-2003 (minimum cycle 200,000 test h) All locks shall be furnished complete with at least three (3) keys. The
report). number of different keys, master keys, and grand master keys shall be
provided with construction keys. All keys shall be high-quality brass
iii. For cylinder locks and the master key to comply with BS EN1303 and nickel silver alloy.
(minimum cycle 100,000 test report).
i) A master key system shall be provided and approved by client and
iv. Door closing devices to comply with BS EN1154 (minimum cycle complied to CGSO requirement.
400,000 test report).
