SECTION 5.0 – ARCHITECTURAL COMPONENTS, MATERIALS AND FINISHES SECTION 5.0 – ARCHITECTURAL COMPONENTS, MATERIALS AND FINISHES

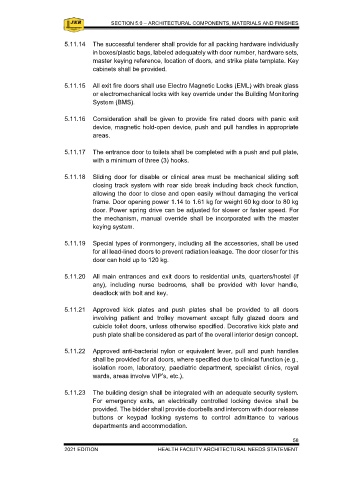

5.11.14 The successful tenderer shall provide for all packing hardware individually
in boxes/plastic bags, labeled adequately with door number, hardware sets, 5.11.24 All door accessories such as door stopper, kick plates, hat and coat hooks,
master keying reference, location of doors, and strike plate template. Key flush pull rings, pull handles, stainless steel flush bolts, and door
cabinets shall be provided. coordinator shall be made of stainless steel 304 grade or otherwise stated.
Warranty for not less than ten (10) years as an addition to the general
5.11.15 All exit fire doors shall use Electro Magnetic Locks (EML) with break glass warranty provided by the successful tenderer and the sample of material
or electromechanical locks with key override under the Building Monitoring shall be submitted for the PD’s concurrence.
System (BMS).
5.11.25 The tenderers shall draw up a schedule of ironmongeries, as part of the
5.11.16 Consideration shall be given to provide fire rated doors with panic exit proposal in Appendix 4 – Schedule of Ironmongeries.
device, magnetic hold-open device, push and pull handles in appropriate
areas.
5.12 ACOUSTIC WORKS
5.11.17 The entrance door to toilets shall be completed with a push and pull plate,
with a minimum of three (3) hooks. 5.12.1 The successful tenderer shall provide acoustic treatment to the auditorium,
lecture rooms, meeting rooms, and other required areas to properly function
5.11.18 Sliding door for disable or clinical area must be mechanical sliding soft and fit for its purpose, as specified in the project requirements.
closing track system with rear side break including back check function,
allowing the door to close and open easily without damaging the vertical 5.12.2 Consideration to provide acoustical treatment shall be given to all spaces
frame. Door opening power 1.14 to 1.61 kg for weight 60 kg door to 80 kg adjacent to mechanical and electrical equipment rooms or spaces.
door. Power spring drive can be adjusted for slower or faster speed. For
the mechanism, manual override shall be incorporated with the master 5.12.3 The successful tenderer shall appoint an Acoustic Specialist to carry out
keying system. the acoustic design works for the required spaces.
5.11.19 Special types of ironmongery, including all the accessories, shall be used 5.12.4 Samples of all the acoustic materials proposed colour schemes together
for all lead-lined doors to prevent radiation leakage. The door closer for this with detailed drawings and performance calculation data endorsed by an
door can hold up to 120 kg. acoustic specialist shall be presented for the PD’s concurrence before
installation.
5.11.20 All main entrances and exit doors to residential units, quarters/hostel (if
any), including nurse bedrooms, shall be provided with lever handle, 5.12.5 Measurement of the indoor ambient noise levels at the noisiest facade shall
deadlock with bolt and key. be taken. The results shall be in accordance with BS EN ISO 140-4, and
the acoustic performance shall be rated following BS EN ISO 717-1.
5.11.21 Approved kick plates and push plates shall be provided to all doors
involving patient and trolley movement except fully glazed doors and 5.12.6 Measurements shall be taken during the external noise levels that are
cubicle toilet doors, unless otherwise specified. Decorative kick plate and representative of conditions during normal operation hours.
push plate shall be considered as part of the overall interior design concept.
5.11.22 Approved anti-bacterial nylon or equivalent lever, pull and push handles 5.13 PAINT WORKS
shall be provided for all doors, where specified due to clinical function (e.g.,
isolation room, laboratory, paediatric department, specialist clinics, royal 5.13.1 All painting works shall comply with the latest JKR Standard Specification
wards, areas involve VIP’s, etc.). for Building Works.
5.11.23 The building design shall be integrated with an adequate security system. 5.13.2 All paints used shall be those supplied by approved manufacturers and to
For emergency exits, an electrically controlled locking device shall be the PD’s concurrence.
provided. The bidder shall provide doorbells and intercom with door release
buttons or keypad locking systems to control admittance to various 5.13.3 All painting works and warranty given shall comply with the specifications
departments and accommodation. specified in the latest JKR Standard Specification for Building Works.
