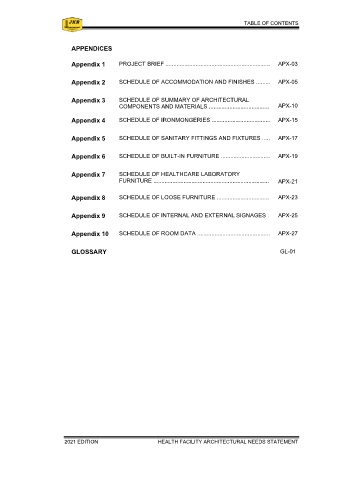

TABLE OF CONTENTS SECTION 1.0 – GENERAL

SECTION 1.0: GENERAL
APPENDICES

Appendix 1 PROJECT BRIEF .................................................................. APX-03
1.1 INTRODUCTION

Appendix 2 SCHEDULE OF ACCOMMODATION AND FINISHES ......... APX-05 1.1.1 The Architectural Works Brief as given shall be for the design, construction,

completion, commissioning, handing-over, and maintenance of building
Appendix 3 SCHEDULE OF SUMMARY OF ARCHITECTURAL works for the said project (Project name and location refer to Appendix 1
COMPONENTS AND MATERIALS ...................................... APX-10
– Project Brief). Attachment of the proposed site plan/development
Appendix 4 SCHEDULE OF IRONMONGERIES ..................................... APX-15 boundary is indicative only.

Appendix 5 SCHEDULE OF SANITARY FITTINGS AND FIXTURES ..... APX-17 1.1.2 The Architectural Works Brief shall be read in conjunction with the Civil and
Structural Works Brief, Mechanical Works Brief, Electrical Works Brief, JKR
Standard Specifications for Building Works, JKR Building Information
Appendix 6 SCHEDULE OF BUILT-IN FURNITURE ............................... APX-19
Modelling (BIM) Requirements (if needed), Needs Statement for Total
Assets Management and all other requirements, of which together shall
Appendix 7 SCHEDULE OF HEALTHCARE LABORATORY form the Government Needs Statement for the project. All design and
FURNITURE ......................................................................... APX-21
building work requirements specified in the needs statement shall be
coordinated and integrated thoroughly to achieve an overall design
Appendix 8 SCHEDULE OF LOOSE FURNITURE ................................. APX-23
proposal that is cohesive and harmonious.

Appendix 9 SCHEDULE OF INTERNAL AND EXTERNAL SIGNAGES . APX-25 1.1.3 All architectural requirements on the design, specification, construction,

equipping, completion, and commissioning of the project shall be carried
Appendix 10 SCHEDULE OF ROOM DATA .............................................. APX-27 following with the best commercial and engineering practice and shall
comply with the latest stipulated Government Circulars, Standards,
GLOSSARY GL-01 Guidelines, Acts & Regulations and in compliance to other international
accreditation body or standards.

1.1.4 The Conceptual Design Drawings (wherever applicable) of this Pre-Bid
document shall only guide the tenderers in submitting the actual design
proposal for this project. The Drawings shall be referred to as a guide for
the minimum standard and requirements of the Government. Further
improvements and refinements to the said concept design are highly
expected from the tenderers, and they shall comply with all the design
requirements as stipulated in the Pre-Bid document.

1.2 THE SITE

1.2.1 Refer to Appendix 1 – Project Brief for the project’s designated site in
terms of location, approximate site area, and site condition descriptions.

1.2.2 All tenderers shall visit the site to understand the site locality’s actual
conditions and evaluate its strengths, weaknesses, opportunities, and
constraints for design decisions. Any claims on the grounds of lack of
knowledge of any off-site or site condition shall not be considered.
