Chapter 3
Gravitation

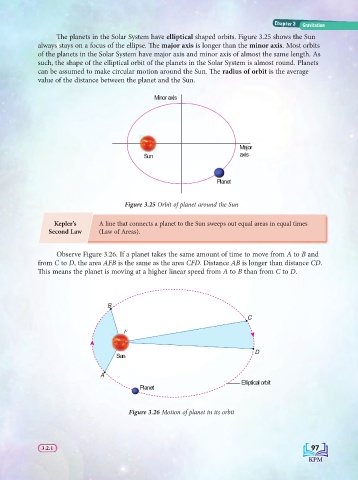

Th e planets in the Solar System have elliptical shaped orbits. Figure 3.25 shows the Sun
always stays on a focus of the ellipse. Th e major axis is longer than the minor axis. Most orbits
of the planets in the Solar System have major axis and minor axis of almost the same length. As
such, the shape of the elliptical orbit of the planets in the Solar System is almost round. Planets
can be assumed to make circular motion around the Sun. Th e radius of orbit is the average
value of the distance between the planet and the Sun.
Minor axis
Major
Sun axis
Planet
Figure 3.25 Orbit of planet around the Sun
Kepler’s A line that connects a planet to the Sun sweeps out equal areas in equal times
Second Law (Law of Areas).
Observe Figure 3.26. If a planet takes the same amount of time to move from A to B and
from C to D, the area AFB is the same as the area CFD. Distance AB is longer than distance CD.
Th is means the planet is moving at a higher linear speed from A to B than from C to D.
B
C
F F
D
Sun
A
Elliptical orbit
Planet
Figure 3.26 Motion of planet in its orbit
