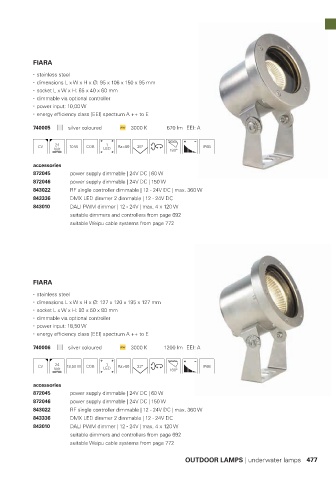

Page 478 - Deko-Light Light Impressions 2019-20
P. 478
FIARA
stainless steel
dimensions L x W x H x Ø: 95 x 106 x 150 x 95 mm
socket L x W x H: 65 x 40 x 60 mm
dimmable via optional controller
power input: 10,00 W
energy efficiency class [EEI] spectrum A ++ to E
740005 silver coloured WW 3000 K 670 lm EEI: A
1
CV 24 10 W COB LED Ra>80 25° 180° IP68
accessories
872045 power supply dimmable | 24V DC | 60 W
872046 power supply dimmable | 24V DC | 150 W
843022 RF single controller dimmable | 12 - 24V DC | max. 360 W
843336 DMX LED dimmer 2 dimmable | 12 - 24V DC
843010 DALI PWM dimmer | 12 - 24V | max. 4 x 120 W
suitable dimmers and controllers from page 692
suitable Weipu cable systems from page 772
FIARA
stainless steel
dimensions L x W x H x Ø: 127 x 120 x 195 x 127 mm
socket L x W x H: 93 x 50 x 80 mm
dimmable via optional controller
power input: 18,50 W
energy efficiency class [EEI] spectrum A ++ to E
740006 silver coloured WW 3000 K 1200 lm EEI: A
CV 24 18,50 W COB 1 Ra>80 22° IP68
LED 180°
accessories
872045 power supply dimmable | 24V DC | 60 W
872046 power supply dimmable | 24V DC | 150 W
843022 RF single controller dimmable | 12 - 24V DC | max. 360 W
843336 DMX LED dimmer 2 dimmable | 12 - 24V DC
843010 DALI PWM dimmer | 12 - 24V | max. 4 x 120 W
suitable dimmers and controllers from page 692
suitable Weipu cable systems from page 772
OUTDOOR LAMPS | underwater lamps 477
