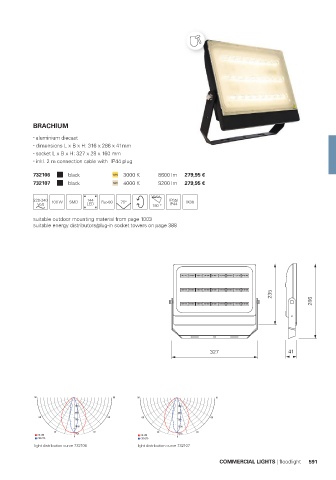

Page 593 - Deko-light Catalogue 2022
P. 593
BRACHIUM
aluminium diecast
dimensions L x B x H: 316 x 286 x 41mm
socket L x B x H: 327 x 28 x 160 mm
inkl. 2 m connection cable with IP44 plug
732106 black WW 3000 K 8600 lm 279,95 €
732107 black NW 4000 K 9200 lm 279,95 €
220-240 100 W SMD LED Ra>80 75° 180 ° IP65/ IK08
144
IP44
suitable outdoor mounting material from page 1003
suitable energy distributors/plug-in socket towers on page 388
235
286
327 41
90 90 90 90
100 100
400 400
60 60 60 60
700 700
1000 1000
30 30 30 30
C0-180 0 1424 C0-180 1316
C90-270 C90-270 0
light distribution curve 732106 light distribution curve 732107
COMMERCIAL LIGHTS | floodlight 591
