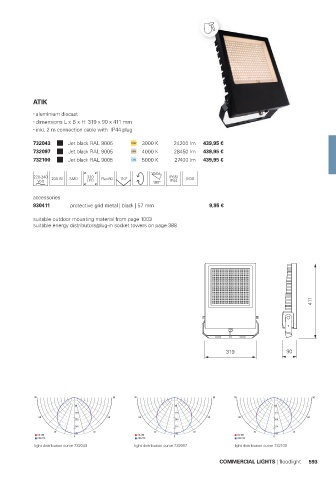

Page 595 - Deko-light Catalogue 2022
P. 595
ATIK
aluminium diecast
dimensions L x B x H: 319 x 90 x 411 mm
inkl. 2 m connection cable with IP44 plug
732043 Jet black RAL 9005 WW 3000 K 24200 lm 439,95 €
732097 Jet black RAL 9005 NW 4000 K 28450 lm 439,95 €
732100 Jet black RAL 9005 CW 5000 K 27400 lm 439,95 €
220-240 200 W SMD LED Ra>80 110° 180° IP65/ IK08
320
IP44
accessories
930411 protective grid metal | black | 57 mm 9,95 €
suitable outdoor mounting material from page 1003
suitable energy distributors/plug-in socket towers on page 388
411
319 90
90 90 90 90 90 90
50 50 50
150 125 125
60 60 60 60 60 60
250 200 200
350 275 275
30 30 30 30 30 30
C0-180 0 394 C0-180 0 382 C0-180 0 379
C90-270 C90-270 C90-270
light distribution curve 732043 light distribution curve 732097 light distribution curve 732100
COMMERCIAL LIGHTS | floodlight 593
