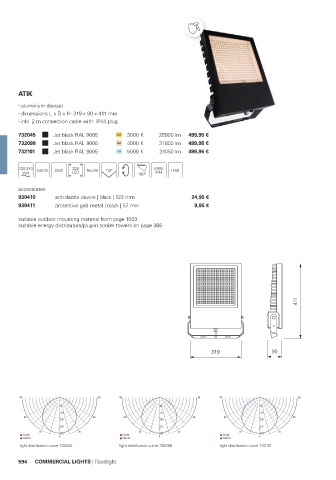

Page 596 - Deko-light Catalogue 2022
P. 596
ATIK
aluminium diecast
dimensions L x B x H: 319 x 90 x 411 mm
inkl. 2 m connection cable with IP44 plug
732045 Jet black RAL 9005 WW 3000 K 26900 lm 499,95 €
732098 Jet black RAL 9005 NW 4000 K 31800 lm 499,95 €
732101 Jet black RAL 9005 CW 5000 K 31050 lm 499,95 €
220-240 240 W SMD 320 Ra>80 110° 180° IP65/ IK08
LED
IP44
accessories
930410 anti-dazzle device | black | 122 mm 24,95 €
930411 protective grid metal | black | 57 mm 9,95 €
suitable outdoor mounting material from page 1003
suitable energy distributors/plug-in socket towers on page 388
411
319 90
90 90 90 90 90 90
50 50 50
150 125 125
60 60 60 60 60 60
250 200 200
350 275 275
30 30 30 30 30 30
C0-180 0 393 C0-180 0 383 C0-180 0 379
C90-270 C90-270 C90-270
light distribution curve 732045 light distribution curve 732098 light distribution curve 732101
594 COMMERCIAL LIGHTS | floodlight
