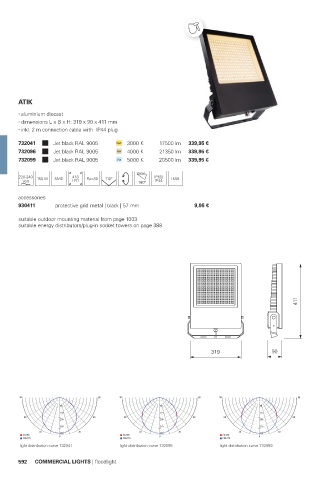

Page 594 - Deko-light Catalogue 2022
P. 594
ATIK
aluminium diecast
dimensions L x B x H: 319 x 90 x 411 mm
inkl. 2 m connection cable with IP44 plug
732041 Jet black RAL 9005 WW 3000 K 17500 lm 339,95 €
732096 Jet black RAL 9005 NW 4000 K 21350 lm 339,95 €
732099 Jet black RAL 9005 CW 5000 K 20500 lm 339,95 €
220-240 150 W SMD 418 Ra>80 110° 180° IP65/ IK08
IP44
LED
accessories
930411 protective grid metal | black | 57 mm 9,95 €
suitable outdoor mounting material from page 1003
suitable energy distributors/plug-in socket towers on page 388
411
319 90
90 90 90 90 90 90
50 50 50
150 125 125
60 60 60 60 60 60
250 200 200
350 275 275
30 30 30 30 30 30
C0-180 0 393 C0-180 0 383 C0-180 0 379
C90-270 C90-270 C90-270
light distribution curve 732041 light distribution curve 732096 light distribution curve 732099
592 COMMERCIAL LIGHTS | floodlight
