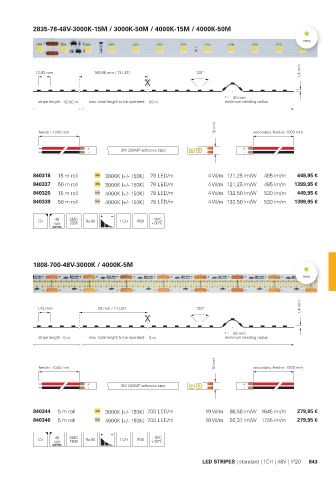

Page 845 - Deko-light Catalogue 2022
P. 845
2835-78-48V-3000K-15M / 3000K-50M / 4000K-15M / 4000K-50M
new
1,4 mm
12,82 mm 166,66 mm / 13 LED 120°
r 50 mm
stripe length: 15 / 50 m max. total length to be operated: 50 m minimum bending radius
10 mm
feed-in: 1000 mm secondary feed-in: 1000 mm
840318 15 m roll 3000K [+/- 150K] 78 LED/m 4 W/m 121,25 lm/W 485 lm/m 449,95 €
840337 50 m roll 3000K [+/- 150K] 78 LED/m 4 W/m 121,25 lm/W 485 lm/m 1399,95 €
840320 15 m roll 4000K [+/- 150K] 78 LED/m 4 W/m 132,50 lm/W 530 lm/m 449,95 €
840339 50 m roll 4000K [+/- 150K] 78 LED/m 4 W/m 132,50 lm/W 530 lm/m 1399,95 €
- 15°C
CV 48 SMD Ra 80 1 CH IP20 + 50°C
2835
1808-700-48V-3000K / 4000K-5M
new
1,4 mm
1,43 mm 20 mm / 14 LED 120°
r 50 mm
stripe length: 5 m max. total length to be operated: 5 m minimum bending radius
10 mm
feed-in: 1000 mm secondary feed-in: 1000 mm
840344 5 m roll 3000K [+/- 150K] 700 LED/m 19 W/m 86,58 lm/W 1645 lm/m 279,95 €
840346 5 m roll 4000K [+/- 150K] 700 LED/m 19 W/m 92,37 lm/W 1755 lm/m 279,95 €
- 15°C
CV 48 SMD Ra 90 1 CH IP20 + 50°C
1808
LED STRIPES | standard | 1CH | 48V | IP20 843
