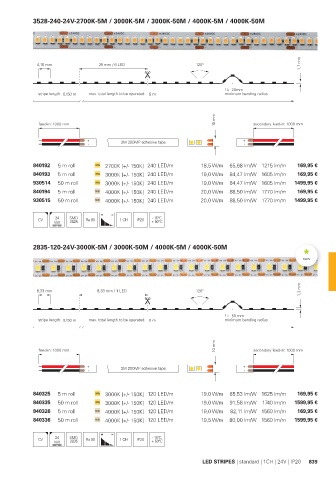

Page 841 - Deko-light Catalogue 2022
P. 841
3528-240-24V-2700K-5M / 3000K-5M / 3000K-50M / 4000K-5M / 4000K-50M
1,7 mm
4,16 mm 25 mm / 6 LED 120°
r 20mm
stripe length: 5 / 50 m max. total length to be operated: 5 m minimum bending radius
10 mm
feed-in: 1000 mm secondary feed-in: 1000 mm
840192 5 m roll 2700K [+/- 150K] 240 LED/m 18,5 W/m 65,68 lm/W 1215 lm/m 169,95 €
840193 5 m roll 3000K [+/- 150K] 240 LED/m 19,0 W/m 84,47 lm/W 1605 lm/m 169,95 €
930514 50 m roll 3000K [+/- 150K] 240 LED/m 19,0 W/m 84,47 lm/W 1605 lm/m 1499,95 €
840194 5 m roll 4000K [+/- 150K] 240 LED/m 20,0 W/m 88,50 lm/W 1770 lm/m 169,95 €
930515 50 m roll 4000K [+/- 150K] 240 LED/m 20,0 W/m 88,50 lm/W 1770 lm/m 1499,95 €
- 15°C
CV 24 SMD Ra 90 1 CH IP20 + 50°C
3528
2835-120-24V-3000K-5M / 3000K-50M / 4000K-5M / 4000K-50M
new
1,3 mm
8,33 mm 8,33 mm / 1 LED 120°
r 50 mm
stripe length: 5 / 50 m max. total length to be operated: 5 m minimum bending radius
10 mm
feed-in: 1000 mm secondary feed-in: 1000 mm
840325 5 m roll 3000K [+/- 150K] 120 LED/m 19,0 W/m 85,53 lm/W 1625 lm/m 169,95 €
840335 50 m roll 3000K [+/- 150K] 120 LED/m 19,0 W/m 91,58 lm/W 1740 lm/m 1599,95 €
840326 5 m roll 4000K [+/- 150K] 120 LED/m 19,0 W/m 82,11 lm/W 1560 lm/m 169,95 €
840336 50 m roll 4000K [+/- 150K] 120 LED/m 19,5 W/m 80,00 lm/W 1560 lm/m 1599,95 €
- 15°C
CV 24 SMD Ra 90 1 CH IP20 + 50°C
2835
LED STRIPES | standard | 1CH | 24V | IP20 839
