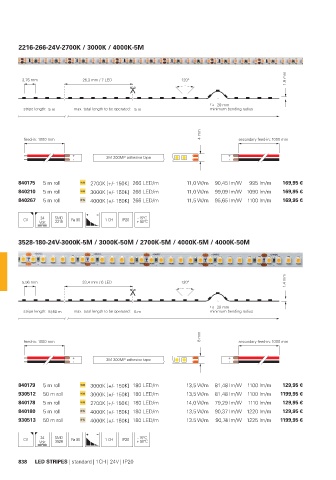

Page 840 - Deko-light Catalogue 2022

2216-266-24V-2700K / 3000K / 4000K-5M

1,6 mm
3,75 mm 26,3 mm / 7 LED 120°

r 20 mm
stripe length: 5 m max. total length to be operated: 5 m minimum bending radius

4 mm
feed-in: 1000 mm secondary feed-in: 1000 mm

840175 5 m roll 2700K [+/- 150K] 266 LED/m 11,0 W/m 90,45 lm/W 995 lm/m 169,95 €
840210 5 m roll 3000K [+/- 150K] 266 LED/m 11,0 W/m 99,09 lm/W 1090 lm/m 169,95 €
840267 5 m roll 4000K [+/- 150K] 266 LED/m 11,5 W/m 95,65 lm/W 1100 lm/m 169,95 €

- 15°C
CV 24 SMD Ra 90 1 CH IP20 + 50°C
2216

3528-180-24V-3000K-5M / 3000K-50M / 2700K-5M / 4000K-5M / 4000K-50M

1,4 mm
5,56 mm 33,4 mm / 6 LED 120°

r 20 mm
stripe length: 5 / 50 m max. total length to be operated: 5 m minimum bending radius

8 mm
feed-in: 1000 mm secondary feed-in: 1000 mm

840179 5 m roll 3000K [+/- 150K] 180 LED/m 13,5 W/m 81,48 lm/W 1100 lm/m 129,95 €
930512 50 m roll 3000K [+/- 150K] 180 LED/m 13,5 W/m 81,48 lm/W 1100 lm/m 1199,95 €
840178 5 m roll 2700K [+/- 150K] 180 LED/m 14,0 W/m 79,29 lm/W 1110 lm/m 129,95 €
840180 5 m roll 4000K [+/- 150K] 180 LED/m 13,5 W/m 90,37 lm/W 1220 lm/m 129,95 €
930513 50 m roll 4000K [+/- 150K] 180 LED/m 13.5 W/m 90,74 lm/W 1225 lm/m 1199,95 €

- 15°C
CV 24 SMD Ra 90 1 CH IP20 + 50°C
3528
838 LED STRIPES | standard | 1CH | 24V | IP20
