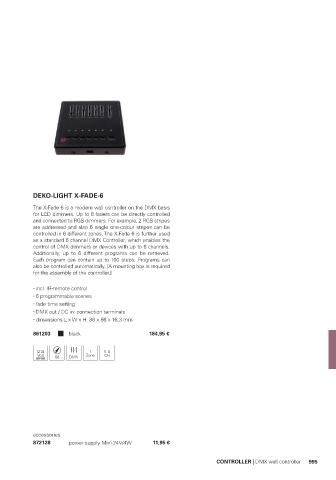

Page 957 - Deko-light Catalogue 2022
P. 957
DEKO-LIGHT X-FADE-6
The X-Fade 6 is a modern wall controller on the DMX basis
for LED dimmers. Up to 6 faders can be directly controlled
and connected to RGB dimmers. For example, 2 RGB stripes
are addressed and also 6 single one-colour stripes can be
controlled in 6 different zones. The X-Fade 6 is further used
as a standard 6 channel DMX Controller, which enables the
control of DMX dimmers or devices with up to 6 channels.
Additionally, up to 6 different programs can be retrieved.
Each program can contain up to 100 steps. Programs can
also be controlled automatically. [A mounting box is required
for the assembly of the controller.]
incl. IR-remote control
6 programmable scenes
fade time setting
DMX out / DC in: connection terminals
dimensions L x W x H: 86 x 86 x 16,3 mm
861203 black 184,95 €
12-24 1 1 - 6
68 Zone
accessories
872128 power supply Mini 24V/4W 11,95 €
CONTROLLER | DMX wall controller 955
