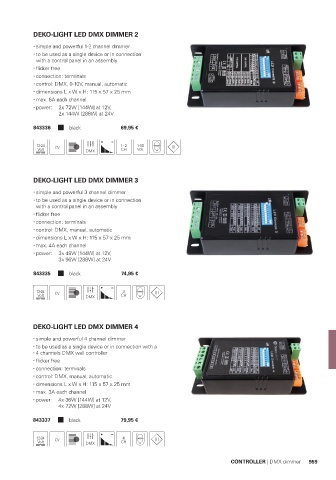

Page 961 - Deko-light Catalogue 2022
P. 961
DEKO-LIGHT LED DMX DIMMER 2
simple and powerful 1-2 channel dimmer
to be used as a single device or in connection
with a control panel in an assembly
flicker free
connection: terminals
control: DMX, 0-10V, manual, automatic
dimensions L x W x H: 115 x 57 x 25 mm
max. 6A each channel
power: 2x 72W [144W] at 12V,
2x 144W [288W] at 24V
843336 black 69,95 €
12-24 CV 1 - 2 1-10
Volt
DEKO-LIGHT LED DMX DIMMER 3
simple and powerful 3 channel dimmer
to be used as a single device or in connection
with a control panel in an assembly
flicker free
connection: terminals
control: DMX, manual, automatic
dimensions L x W x H: 115 x 57 x 25 mm
max. 4A each channel
power: 3x 48W [144W] at 12V,
3x 96W [288W] at 24V
843335 black 74,95 €
12-24 CV 3
DEKO-LIGHT LED DMX DIMMER 4
simple and powerful 4 channel dimmer
to be used as a single device or in connection with a
4 channels DMX wall controller
flicker free
connection: terminals
control: DMX, manual, automatic
dimensions L x W x H: 115 x 57 x 25 mm
max. 3A each channel
power: 4x 36W [144W] at 12V,
4x 72W [288W] at 24V
843337 black 79,95 €
12-24 CV 4
CONTROLLER | DMX dimmer 959
