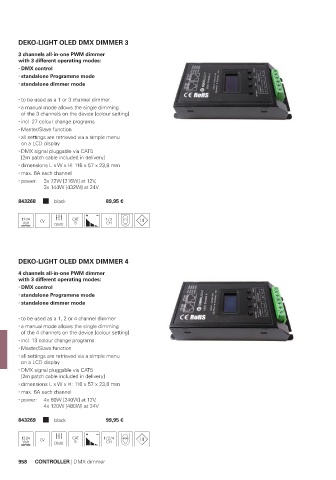

Page 960 - Deko-light Catalogue 2022
P. 960
DEKO-LIGHT OLED DMX DIMMER 3
3 channels all-in-one PWM dimmer
with 3 different operating modes:
DMX control
standalone Programme mode
standalone dimmer mode
to be used as a 1 or 3 channel dimmer
a manual mode allows the single dimming
of the 3 channels on the device [colour setting]
incl. 27 colour change programs
Master/Slave function
all settings are retrieved via a simple menu
on a LCD display
DMX signal pluggable via CAT5
[2m patch cable included in delivery]
dimensions L x W x H: 116 x 57 x 23,8 mm
max. 6A each channel
power: 3x 72W [216W] at 12V,
3x 144W [432W] at 24V
843268 black 89,95 €
12-24 CV CAT 1 / 3
5
DEKO-LIGHT OLED DMX DIMMER 4
4 channels all-in-one PWM dimmer
with 3 different operating modes:
DMX control
standalone Programme mode
standalone dimmer mode
to be used as a 1, 2 or 4 channel dimmer
a manual mode allows the single dimming
of the 4 channels on the device [colour setting]
incl. 13 colour change programs
Master/Slave function
all settings are retrieved via a simple menu
on a LCD display
DMX signal pluggable via CAT5
[2m patch cable included in delivery]
dimensions L x W x H: 116 x 57 x 23,8 mm
max. 6A each channel
power: 4x 60W [240W] at 12V,
4x 120W [480W] at 24V
843269 black 99,95 €
12-24 CV CAT 1 / 2 / 4
5
958 CONTROLLER | DMX dimmer
