263

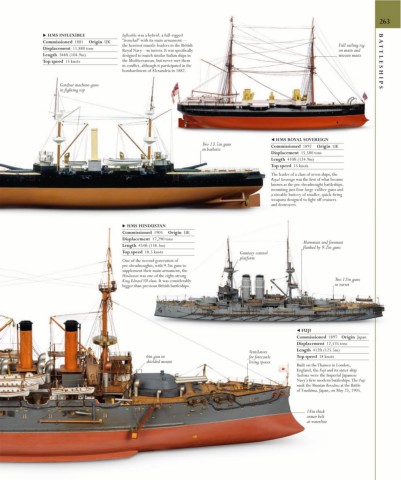

▶ HMS INFLEXIBLE Inflexible was a hybrid: a full-rigged
Commissioned 1881 Origin UK “ironclad” with its main armament— BA
the heaviest muzzle-loaders in the British Full sailing rig
Displacement 11,880 tons Royal Navy—in turrets. It was specifically on main and
Length 344ft (104.9m) designed to match similar Italian ships in mizzen masts
Top speed 15 knots the Mediterranean, but never met them
in conflict, although it participated in the TTLESHIPS
bombardment of Alexandria in 1882.

Gardner machine-guns
in fighting top

◀ HMS ROYAL SOVEREIGN
Two 13.5in guns Commissioned 1892 Origin UK
in barbette
Displacement 15,580 tons
Length 410ft (124.9m)
Top speed 15 knots
The leader of a class of seven ships, the
Royal Sovereign was the first of what became
known as the pre-dreadnought battleships,
mounting just four large-caliber guns and
a sizeable battery of smaller, quick-firing
weapons designed to fight off cruisers
and destroyers.

▶ HMS HINDUSTAN
Commissioned 1905 Origin UK
Displacement 17,290 tons
Mainmast and foremast
Length 454ft (138.3m) flanked by 9.2in guns
Top speed 18.5 knots Gunnery control
platform
One of the second generation of
pre-dreadnoughts, with 9.2in guns to
supplement their main armament, the
Hindustan was one of the eight-strong
King Edward VII class. It was considerably Two 12in guns
bigger than previous British battleships. in turret

◀ FUJI
Commissioned 1897 Origin Japan
Displacement 12,535 tons
Length 412ft (125.5m)
Ventilators
6in gun in for forecastle Top speed 18 knots
shielded mount living spaces
Built on the Thames in London,
England, the Fuji and its sister-ship
Yashima were the Imperial Japanese
Navy’s first modern battleships. The Fuji
sunk the Russian Borodino at the Battle
of Tsushima, Japan, on May 25, 1905.

18in thick
armor belt
at waterline
