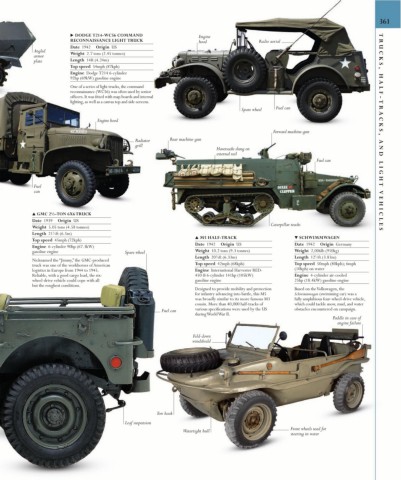

Page 363 - (DK) Smithsinian - Military History: The Definitive Visual Guide to the Objects of Warfare

361

▶ DODGE T214-WC56 COMMAND Engine
RECONNAISSANCE LIGHT TRUCK hood Radio aerial TR
Date 1942 Origin US
Angled
armor Weight 2.7 tons (2.45 tonnes) UCKS,
plate Length 14ft (4.24m)
Top speed 54mph (87kph)
Engine Dodge T214 6-cylinder
92hp (69kW) gasoline engine
One of a series of light trucks, the command
reconnaissance (WC56) was often used by senior HALF-TRA
officers. It was fitted with map boards and internal
lighting, as well as a canvas top and side-screens.
Spare wheel Fuel can
Engine hood CKS,

Forward machine-gun
Radiator Rear machine-gun
grill
Haversacks slung on
external rail
Fuel can

Fuel AND LIGHT VEHICLES
can

▲ GMC 2½-TON 6X6 TRUCK
Date 1939 Origin US
Caterpillar tracks
Weight 5.05 tons (4.58 tonnes)
1
Length 21 ⁄4ft (6.5m)
▲ M5 HALF-TRACK ▼ SCHWIMMWAGEN
Top speed 45mph (72kph)
Date 1942 Origin US Date 1942 Origin Germany
Engine 6-cylinder 90hp (67.3kW)
gasoline engine Spare wheel Weight 10.2 tons (9.3 tonnes) Weight 2,006lb (910kg)
1
Length 20 ⁄4ft (6.33m) Length 12 ⁄2ft (3.83m)
3
Nicknamed the “Jimmy,” the GMC-produced
truck was one of the workhorses of American Top speed 42mph (68kph) Top speed 50mph (80kph); 6mph
logistics in Europe from 1944 to 1945. Engine International Harvester RED- (10kph) on water
Reliable, with a good cargo load, the six- 450-B 6-cylinder 141hp (105kW) Engine 4-cylinder air-cooled
wheel-drive vehicle could cope with all gasoline engine 25hp (18.4kW) gasoline engine
but the roughest conditions.
Designed to provide mobility and protection Based on the Volkswagen, the
for infantry advancing into battle, this M5 Schwimmwagen (swimming car) was a
was broadly similar to its more famous M3 fully amphibious four-wheel-drive vehicle,
cousin. More than 40,000 half-tracks of which could tackle snow, mud, and water
Fuel can various specifications were used by the US obstacles encountered on campaign.
during World War II.
Paddle in case of
engine failure
Fold-down
windshield

Tow hook
Leaf suspension
Front wheels used for
Watertight hull
steering in water
