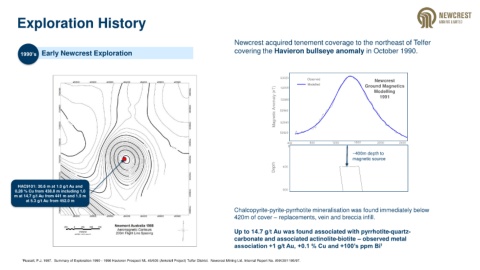

Exploration History

Newcrest acquired tenement coverage to the northeast of Telfer

1990’s Early Newcrest Exploration covering the Havieron bullseye anomaly in October 1990.

53020 Observed Newcrest
Modelled Ground Magnetics
Magnetic Anomaly (nT) 52960 1991
53000
Modelling
52980

52940

52920
400 800 1200 1600 2000 2400
0
~400m depth to
magnetic source
Depth -400

HAC9101: 30.6 m at 1.0 g/t Au and
0.28 % Cu from 438.8 m including 1.0 -800
m at 14.7 g/t Au from 441 m and 1.5 m
at 5.3 g/t Au from 452.0 m
Chalcopyrite-pyrite-pyrrhotite mineralisation was found immediately below
420m of cover – replacements, vein and breccia infill.

Up to 14.7 g/t Au was found associated with pyrrhotite-quartz-
carbonate and associated actinolite-biotite – observed metal
association +1 g/t Au, +0.1 % Cu and +100’s ppm Bi 1

1 Russell, P.J. 1997. Summary of Exploration 1990 - 1996 Havieron Prospect ML 45/605 (Anketell Project) Telfer District. Newcrest Mining Ltd. Internal Report No. ANK30/1195/97.
