Chapter 2 Common processes and techniques

STEP 4 Lubricate the end of the pipe using silicone STEP 5 Check that the seal is in the correct position
grease. Do not use liquid soap as this can adversely in the fitting.
affect the rubber seal.

STEP 6 Push the pipe all the way into the fitting and STEP 7 Withdraw the pipe 10 mm from the fitting. This is to
mark the pipe at the end of the fitting using a pencil. allow for expansion of the pipe. Fittings must be supported
by a pipe bracket to prevent the fitting from slipping.

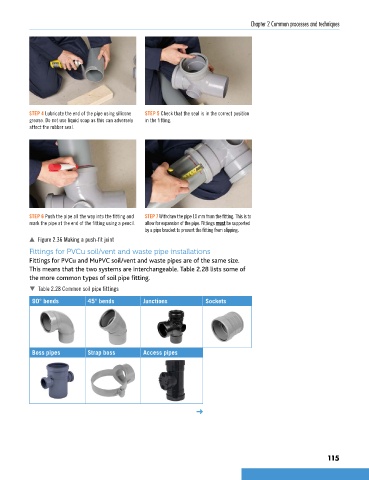

p Figure 2.36 Making a push-fit joint
Fittings for PVCu soil/vent and waste pipe installations
Fittings for PVCu and MuPVC soil/vent and waste pipes are of the same size.
This means that the two systems are interchangeable. Table 2.28 lists some of
the more common types of soil pipe fitting.
 Table 2.28 Common soil pipe fittings
90° bends 45° bends Junctions Sockets

Boss pipes Strap boss Access pipes

➜

115
