The City & Guilds Textbook: Plumbing Book 1

15 A joint made on copper pipe, which uses an electrically operated tool to
compress a fitting incorporating a rubber seal onto the pipe, is known as
what?

Practical activity

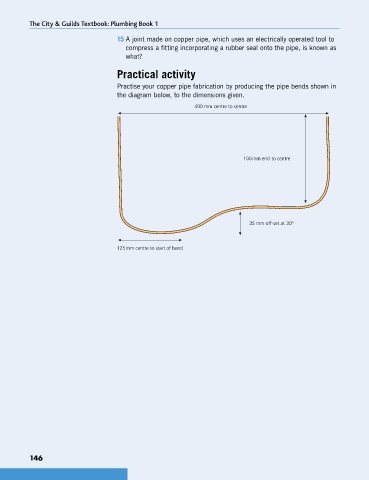

Practise your copper pipe fabrication by producing the pipe bends shown in
the diagram below, to the dimensions given.
400 mm centre to centre

100 mm end to centre

35 mm off-set at 30º

125 mm centre to start of bend
