Chapter 5 Cold water systems
Control box to monitor
pressure and flow rate
and to vary the pump
Water feed to property speed if necessary
Pressure and flow rate
LCD read out
Water supply in
Single-stage pump

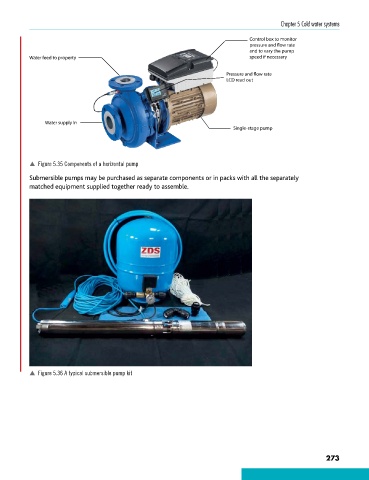

p Figure 5.35 Components of a horizontal pump
Submersible pumps may be purchased as separate components or in packs with all the separately
matched equipment supplied together ready to assemble.
p Figure 5.36 A typical submersible pump kit
273
