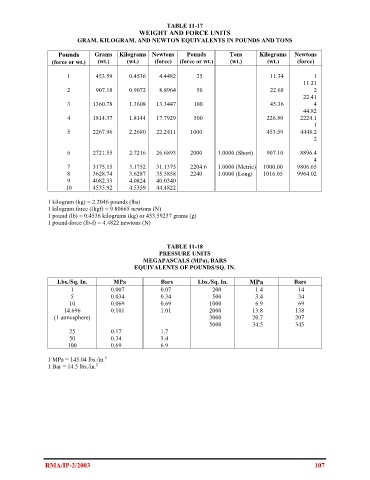

TABLE 11-17
WEIGHT AND FORCE UNITS
GRAM, KILOGRAM, AND NEWTON EQUIVALENTS IN POUNDS AND TONS

Pounds Grams Kilograms Newtons Pounds Tons Kilograms Newtons
(force or wt.) (wt.) (wt.) (force) (force or wt.) (wt.) (wt.) (force)

1 453.59 0.4536 4.4482 25 11.34 1
11.21
2 907.18 0.9072 8.8964 50 22.68 2
22.41
3 1360.78 1.3608 13.3447 100 45.36 4
44.82
4 1814.37 1.8144 17.7929 500 226.80 2224.1
1
5 2267.96 2.2680 22.2411 1000 453.59 4448.2
2

6 2721.55 2.7216 26.6893 2000 1.0000 (Short) 907.10 8896.4
4
7 3175.15 3.1752 31.1375 2204.6 1.0000 (Metric) 1000.00 9806.65
8 3628.74 3.6287 35.5858 2240 1.0000 (Long) 1016.05 9964.02
9 4082.33 4.0824 40.0340
10 4535.92 4.5359 44.4822

1 kilogram (kg) = 2.2046 pounds (lbs)
1 kilogram force ((kgf) = 9.80665 newtons (N)
1 pound (lb) = 0.4536 kilograms (kg) or 453.59237 grams (g)
1 pound-force (lb-f) = 4.4822 newtons (N)

TABLE 11-18
PRESSURE UNITS
MEGAPASCALS (MPa), BARS
EQUIVALENTS OF POUNDS/SQ. IN.

Lbs./Sq. In. MPa Bars Lbs./Sq. In. MPa Bars
1 0.007 0.07 200 1.4 14
5 0.034 0.34 500 3.4 34
10 0.069 0.69 1000 6.9 69
14.696 0.101 1.01 2000 13.8 138
(1 atmosphere) 3000 20.7 207
5000 34.5 345
25 0.17 1.7
50 0.34 3.4
100 0.69 6.9

2
1 MPa = 145.04 lbs./in.
1 Bar = 14.5 lbs./in. 2

RMA/IP-2/2003 107
