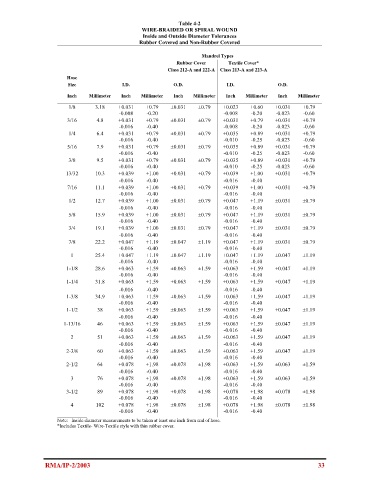

Table 4-2
WIRE-BRAIDED OR SPIRAL WOUND
Inside and Outside Diameter Tolerances
Rubber Covered and Non-Rubber Covered

Mandrel Types
Rubber Cover Textile Cover*
Class 212-A and 222-A Class 213-A and 223-A
Hose
Size I.D. O.D. I.D. O.D.

Inch Millimeter Inch Millimeter Inch Millimeter Inch Millimeter Inch Millimeter

1/8 3.18 +0.031 +0.79 ±0.031 ±0.79 +0.023 +0.60 +0.031 +0.79
-0.008 -0.20 -0.008 -0.20 -0.023 -0.60
3/16 4.8 +0.031 +0.79 ±0.031 ±0.79 +0.031 +0.79 +0.031 +0.79
-0.016 -0.40 -0.008 -0.20 -0.023 -0.60
1/4 6.4 +0.031 +0.79 ±0.031 ±0.79 +0.035 +0.89 +0.031 +0.79
-0.016 -0.40 -0.010 -0.25 -0.023 -0.60
5/16 7.9 +0.031 +0.79 ±0.031 ±0.79 +0.035 +0.89 +0.031 +0.79
-0.016 -0.40 -0.010 -0.25 -0.023 -0.60
3/8 9.5 +0.031 +0.79 ±0.031 ±0.79 +0.035 +0.89 +0.031 +0.79
-0.016 -0.40 -0.010 -0.25 -0.023 -0.60
13/32 10.3 +0.039 +1.00 ±0.031 ±0.79 +0.039 +1.00 ±0.031 +0.79
-0.016 -0.40 -0.016 -0.40
7/16 11.1 +0.039 +1.00 ±0.031 ±0.79 +0.039 +1.00 ±0.031 ±0.79
-0.016 -0.40 -0.016 -0.40
1/2 12.7 +0.039 +1.00 ±0.031 ±0.79 +0.047 +1.19 ±0.031 ±0.79
-0.016 -0.40 -0.016 -0.40
5/8 15.9 +0.039 +1.00 ±0.031 ±0.79 +0.047 +1.19 ±0.031 ±0.79
-0.016 -0.40 -0.016 -0.40
3/4 19.1 +0.039 +1.00 ±0.031 ±0.79 +0.047 +1.19 ±0.031 ±0.79
-0.016 -0.40 -0.016 -0.40
7/8 22.2 +0.047 +1.19 ±0.047 ±1.19 +0.047 +1.19 ±0.031 ±0.79
-0.016 -0.40 -0.016 -0.40
1 25.4 +0.047 +1.19 ±0.047 ±1.19 +0.047 +1.19 ±0.047 ±1.19
-0.016 -0.40 -0.016 -0.40
1-1/8 28.6 +0.063 +1.59 ±0.063 ±1.59 +0.063 +1.59 +0.047 ±1.19
-0.016 -0.40 -0.016 -0.40
1-1/4 31.8 +0.063 +1.59 ±0.063 ±1.59 +0.063 +1.59 ±0.047 ±1.19
-0.016 -0.40 -0.016 -0.40
1-3/8 34.9 +0.063 +1.59 ±0.063 ±1.59 +0.063 +1.59 ±0.047 ±1.19
-0.016 -0.40 -0.016 -0.40
1-1/2 38 +0.063 +1.59 ±0.063 ±1.59 +0.063 +1.59 +0.047 ±1.19
-0.016 -0.40 -0.016 -0.40
1-13/16 46 +0.063 +1.59 ±0.063 ±1.59 +0.063 +1.59 ±0.047 ±1.19
-0.016 -0.40 -0.016 -0.40
2 51 +0.063 +1.59 ±0.063 ±1.59 +0.063 +1.59 ±0.047 ±1.19
-0.016 -0.40 -0.016 -0.40
2-3/8 60 +0.063 +1.59 ±0.063 ±1.59 +0.063 +1.59 ±0.047 ±1.19
-0.016 -0.40 -0.016 -0.40
2-1/2 64 +0.078 +1.98 ±0.078 ±1.98 +0.063 +1.59 ±0.063 ±1.59
-0.016 -0.40 -0.016 -0.40
3 76 +0.078 +1.98 ±0.078 ±1.98 +0.063 +1.59 ±0.063 ±1.59
-0.016 -0.40 -0.016 -0.40
3-1/2 89 +0.078 +1.98 +0.078 ±1.98 +0.078 +1.98 ±0.078 ±1.98
-0.016 -0.40 -0.016 -0.40
4 102 +0.078 +1.98 ±0.078 ±1.98 +0.078 +1.98 ±0.078 ±1.98
-0.016 -0.40 -0.016 -0.40
Note: Inside diameter measurements to be taken at least one inch from end of hose.
*Includes Textile- Wire-Textile style with thin rubber cover.

RMA/IP-2/2003 33
