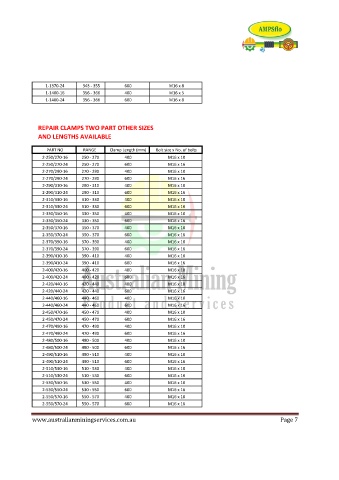

Page 46 - a compendium of pipe repair clamps - Pipe couplings and tapping equiptment 2016_Neat

1-1370-24 343 - 355 600 M16 x 8
1-1400-16 356 - 366 400 M16 x 5
1-1400-24 356 - 366 600 M16 x 8

REPAIR CLAMPS TWO PART OTHER SIZES
AND LENGTHS AVAILABLE

PART NO RANGE Clamp Length (mm) Bolt size x No. of bolts
2-250/270-16 250 - 270 400 M16 x 10
2-250/270-24 250 - 270 600 M16 x 16
2-270/290-16 270 - 290 400 M16 x 10
2-270/290-24 270 - 290 600 M16 x 16
2-290/310-16 290 - 310 400 M16 x 10
2-290/310-24 290 - 310 600 M16 x 16
2-310/330-16 310 - 330 400 M16 x 10
2-310/330-24 310 - 330 600 M16 x 16
2-330/350-16 330 - 350 400 M16 x 10
2-330/350-24 330 - 350 600 M16 x 16
2-350/370-16 350 - 370 400 M16 x 10
2-350/370-24 350 - 370 600 M16 x 16
2-370/390-16 370 - 390 400 M16 x 10
2-370/390-24 370 - 390 600 M16 x 16
2-390/410-16 390 - 410 400 M16 x 10
2-390/410-24 390 - 410 600 M16 x 16
2-400/420-16 400 - 420 400 M16 x 10
2-400/420-24 400 - 420 600 M16 x 16
2-420/440-16 420 - 440 400 M16 x 10
2-420/440-24 420 - 440 600 M16 x 16
2-440/460-16 440 - 460 400 M16 x 10
2-440/460-24 440 - 460 600 M16 x 16
2-450/470-16 450 - 470 400 M16 x 10
2-450/470-24 450 - 470 600 M16 x 16
2-470/490-16 470 - 490 400 M16 x 10
2-470/490-24 470 - 490 600 M16 x 16
2-480/500-16 480 - 500 400 M16 x 10
2-480/500-24 480 - 500 600 M16 x 16
2-490/510-16 490 - 510 400 M16 x 10
2-490/510-24 490 - 510 600 M16 x 16
2-510/530-16 510 - 530 400 M16 x 10
2-510/530-24 510 - 530 600 M16 x 16
2-530/550-16 530 - 550 400 M16 x 10
2-530/550-24 530 - 550 600 M16 x 16
2-550/570-16 550 - 570 400 M16 x 10
2-550/570-24 550 - 570 600 M16 x 16
