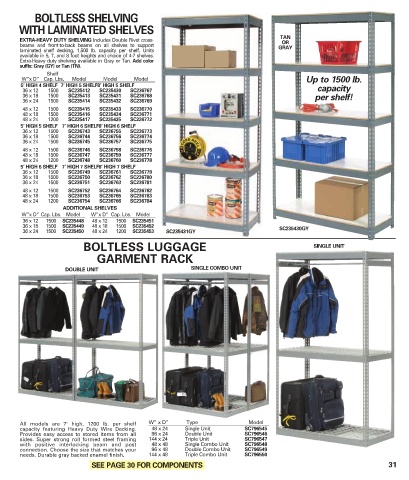

Page 31 - 2021-87 PMGSGLBL Material_Handling_Catalog_AP_V PMGS_Neat

BOLTLESS SHELVING
WITH LAMINATED SHELVES
EXTRA-HEAVY DUTY SHELVING Includes Double Rivet cross- TAN
beams and front-to-back beams on all shelves to support OR
laminated shelf decking. 1,500 lb. capacity per shelf. Units GRAY
available in 5, 7, and 8 foot heights and choice of 4-7 shelves.
Extra-Heavy duty shelving available in Gray or Tan. Add color
suffix: Gray (GY) or Tan (TN).
Shelf
W”x D” Cap. Lbs. Model Model Model Up to 1500 lb.
5’ HIGH 4 SHELF 7’ HIGH 5 SHELF 8’ HIGH 5 SHELF capacity
36 x 12 1500 SC235412 SC235430 SC236767
36 x 18 1500 SC235413 SC235431 SC236768 per shelf!
36 x 24 1500 SC235414 SC235432 SC236769
48 x 12 1500 SC235415 SC235433 SC236770
48 x 18 1500 SC235416 SC235434 SC236771
48 x 24 1200 SC235417 SC235435 SC236772
5’ HIGH 5 SHELF 7’ HIGH 6 SHELF 8’ HIGH 6 SHELF
36 x 12 1500 SC236743 SC236755 SC236773
36 x 18 1500 SC236744 SC236756 SC236774
36 x 24 1500 SC236745 SC236757 SC236775
48 x 12 1500 SC236746 SC236758 SC236776
48 x 18 1500 SC236747 SC236759 SC236777
48 x 24 1200 SC236748 SC236760 SC236778
5’ HIGH 6 SHELF 7’ HIGH 7 SHELF 8’ HIGH 7 SHELF
36 x 12 1500 SC236749 SC236761 SC236779
36 x 18 1500 SC236750 SC236762 SC236780
36 x 24 1500 SC236751 SC236763 SC236781
48 x 12 1500 SC236752 SC236764 SC236782
48 x 18 1500 SC236753 SC236765 SC236783
48 x 24 1200 SC236754 SC236766 SC236784
ADDITIONAL SHELVES

W”x D” Cap. Lbs. Model W”x D” Cap. Lbs. Model
36 x 12 1500 SC235448 48 x 12 1500 SC235451
36 x 18 1500 SC235449 48 x 18 1500 SC235452
36 x 24 1500 SC235450 48 x 24 1200 SC235453 SC235431GY SC235430GY
BOLTLESS LUGGAGE SINGLE UNIT
GARMENT RACK
DOUBLE UNIT SINGLE COMBO UNIT

All models are 7' high, 1200 lb. per shelf W” x D” Type Model
capacity featuring Heavy Duty Wire Decking. 48 x 24 Single Unit SC796545
Provides easy access to stored items from all 96 x 24 Double Unit SC796546
sides. Super strong roll formed steel framing 144 x 24 Triple Unit SC796547
with positive interlocking beam and post 48 x 48 Single Combo Unit SC796548
connection. Choose the size that matches your 96 x 48 Double Combo Unit SC796549
needs. Durable gray backed enamel finish. 144 x 48 Triple Combo Unit SC796550
SEE PAGE 30 FOR COMPONENTS 31
