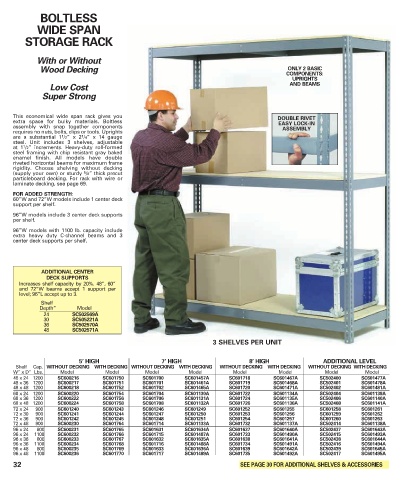

Page 32 - 2021-87 PMGSGLBL Material_Handling_Catalog_AP_V PMGS_Neat

BOLTLESS
WIDE SPAN
STORAGE RACK

With or Without
Wood Decking ONLY 2 BASIC
COMPONENTS:
UPRIGHTS
Low Cost AND BEAMS
Super Strong

This economical wide span rack gives you DOUBLE RIVET
extra space for bulky materials. Boltless EASY LOCK-IN
assembly with snap together components ASSEMBLY
requires no nuts, bolts, clips or tools. Uprights
are a substantial 1 1 /2” x 2 1 /4” x 14 gauge
steel. Unit includes 3 shelves, adjustable
at 1 1 /2” increments. Heavy-duty roll-formed
steel framing with chip resistant gray baked
enamel finish. All models have double
riveted horizontal beams for maximum frame
rigidity. Choose shelving without decking
(supply your own) or sturdy 5 /8” thick precut
particleboard decking. For rack with wire or
laminate decking, see page 69.
FOR ADDED STRENGTH:
60”W and 72”W models include 1 center deck
support per shelf.
96”W models include 3 center deck supports
per shelf.
96”W models with 1100 lb. capacity include
extra heavy duty C-channel beams and 3
center deck supports per shelf.

ADDITIONAL CENTER
DECK SUPPORTS
Increases shelf capacity by 20%. 48”, 60”
and 72”W beams accept 1 support per
level; 96”L accept up to 3.
Shelf
Depth” Model
24 SC502569A
30 SC505221A
36 SC502570A
48 SC502571A
3 SHELVES PER UNIT

5’ HIGH 7’ HIGH 8’ HIGH ADDITIONAL LEVEL

Shelf Cap. WITHOUT DECKING WITH DECKING WITHOUT DECKING WITH DECKING WITHOUT DECKING WITH DECKING WITHOUT DECKING WITH DECKING
W” x D” Lbs. Model Model Model Model Model Model Model Model
48 x 24 1200 SC600216 SC601750 SC601700 SC601457A SC601718 SC601467A SC502400 SC601477A
48 x 36 1200 SC600217 SC601751 SC601701 SC601461A SC601719 SC601468A SC502401 SC601478A
48 x 48 1200 SC600218 SC601752 SC601702 SC601465A SC601720 SC601471A SC502402 SC601481A
60 x 24 1200 SC600220 SC601754 SC601704 SC601130A SC601722 SC601134A SC502404 SC601139A
60 x 36 1200 SC600222 SC601756 SC601706 SC601131A SC601724 SC601135A SC502406 SC601140A
60 x 48 1200 SC600224 SC601758 SC601708 SC601132A SC601726 SC601136A SC502408 SC601141A
72 x 24 900 SC601240 SC601243 SC601246 SC601249 SC601252 SC601255 SC601258 SC601261
72 x 30 900 SC601241 SC601244 SC601247 SC601250 SC601253 SC601256 SC601259 SC601262
72 x 36 900 SC601242 SC601245 SC601248 SC601251 SC601254 SC601257 SC601260 SC601263
72 x 48 900 SC600230 SC601764 SC601714 SC601133A SC601732 SC601137A SC502414 SC601138A
96 x 24 800 SC600231 SC601765 SC601631 SC601634A SC601637 SC601640A SC502437 SC601643A
96 x 24 1100 SC600232 SC601766 SC601715 SC601487A SC601733 SC601490A SC502415 SC601493A
96 x 36 800 SC600233 SC601767 SC601632 SC601635A SC601638 SC601641A SC502438 SC601644A
96 x 36 1100 SC600234 SC601768 SC601716 SC601488A SC601734 SC601491A SC502416 SC601494A
96 x 48 800 SC600235 SC601769 SC601633 SC601636A SC601639 SC601642A SC502439 SC601645A
96 x 48 1100 SC600236 SC601770 SC601717 SC601489A SC601735 SC601492A SC502417 SC601495A
32 SEE PAGE 30 FOR ADDITIONAL SHELVES & ACCESSORIES
