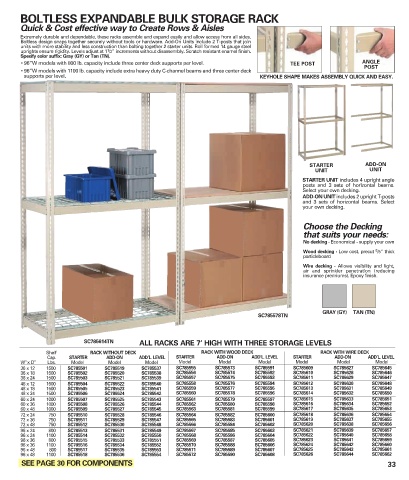

BOLTLESS EXPANDABLE BULK STORAGE RACK
Quick & Cost effective way to Create Rows & Aisles
Extremely durable and dependable, these racks assemble and expand easily and allow access from all sides.
Boltless design snaps together securely without tools or hardware. Add-On Units include 2 T-posts that join
units with more stability and less construction than bolting together 2 starter units. Roll formed 14 gauge steel
uprights ensure rigidity. Levels adjust at 1 1 /2” increments without disassembly. Scratch resistant enamel finish.
Specify color suffix: Gray (GY) or Tan (TN).
• 96”W models with 800 lb. capacity include three center deck supports per level. TEE POST ANGLE
• 96”W models with 1100 lb. capacity include extra heavy duty C-channel beams and three center deck POST
supports per level. KEYHOLE SHAPE MAKES ASSEMBLY QUICK AND EASY.

STARTER ADD-ON
UNIT UNIT
STARTER UNIT includes 4 upright angle
posts and 3 sets of horizontal beams.
Select your own decking.
ADD-ON UNIT includes 2 upright T-posts
and 3 sets of horizontal beams. Select
your own decking.
Choose the Decking
that suits your needs:
No decking - Economical - supply your own
Wood decking - Low cost, precut 5 /8” thick
particleboard
Wire decking - Allows visibility and light,
air and sprinkler penetration (reducing
insurance premiums). Epoxy finish.

GRAY (GY) TAN (TN)
SC785578TN

SC785614TN ALL RACKS ARE 7’ HIGH WITH THREE STORAGE LEVELS
Shelf RACK WITHOUT DECK RACK WITH WOOD DECK RACK WITH WIRE DECK
Cap. STARTER ADD-ON ADD’L. LEVEL STARTER ADD-ON ADD’L. LEVEL STARTER ADD-ON ADD’L. LEVEL
W”x D” Lbs. Model Model Model Model Model Model Model Model Model
36 x 12 1500 SC785501 SC785519 SC785537 SC785555 SC785573 SC785591 SC785609 SC785627 SC785645
36 x 18 1500 SC785502 SC785520 SC785538 SC785556 SC785574 SC785592 SC785610 SC785628 SC785646
36 x 24 1500 SC785503 SC785521 SC785539 SC785557 SC785575 SC785593 SC785611 SC785629 SC785647
48 x 12 1500 SC785504 SC785522 SC785540 SC785558 SC785576 SC785594 SC785612 SC785630 SC785648
48 x 18 1500 SC785505 SC785523 SC785541 SC785559 SC785577 SC785595 SC785613 SC785631 SC785649
48 x 24 1500 SC785506 SC785524 SC785542 SC785560 SC785578 SC785596 SC785614 SC785632 SC785650
60 x 24 1000 SC785507 SC785525 SC785543 SC785561 SC785579 SC785597 SC785615 SC785633 SC785651
60 x 36 1000 SC785508 SC785526 SC785544 SC785562 SC785580 SC785598 SC785616 SC785634 SC785652
60 x 48 1000 SC785509 SC785527 SC785545 SC785563 SC785581 SC785599 SC785617 SC785635 SC785653
72 x 24 750 SC785510 SC785528 SC785546 SC785564 SC785582 SC785600 SC785618 SC785636 SC785654
72 x 36 750 SC785511 SC785529 SC785547 SC785565 SC785583 SC785601 SC785619 SC785637 SC785655
72 x 48 750 SC785512 SC785530 SC785548 SC785566 SC785584 SC785602 SC785620 SC785638 SC785656
96 x 24 800 SC785513 SC785531 SC785549 SC785567 SC785585 SC785603 SC785621 SC785639 SC785657
96 x 24 1100 SC785514 SC785532 SC785550 SC785568 SC785586 SC785604 SC785622 SC785640 SC785658
96 x 36 800 SC785515 SC785533 SC785551 SC785569 SC785587 SC785605 SC785623 SC785641 SC785659
96 x 36 1100 SC785516 SC785534 SC785552 SC785570 SC785588 SC785606 SC785624 SC785642 SC785660
96 x 48 800 SC785517 SC785535 SC785553 SC785571 SC785589 SC785607 SC785625 SC785643 SC785661
96 x 48 1100 SC785518 SC785536 SC785554 SC785572 SC785590 SC785608 SC785626 SC785644 SC785662
SEE PAGE 30 FOR COMPONENTS 33
