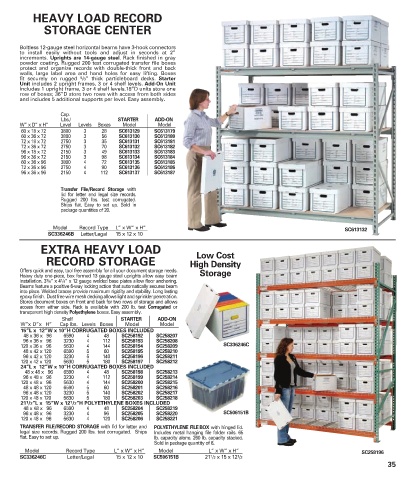

Page 35 - 2021-87 PMGSGLBL Material_Handling_Catalog_AP_V PMGS_Neat

HEAVY LOAD RECORD
STORAGE CENTER

Boltless 12-gauge steel horizontal beams have 3-hook connectors
to install easily without tools and adjust in seconds at 2”
increments. Uprights are 14-gauge steel. Rack finished in gray
powder coating. Rugged 200 test corrugated transfer file boxes
protect and organize records with double-thick front and back
walls, large label area and hand holes for easy lifting. Boxes
fit securely on rugged 5 /8” thick particleboard decks. Starter
Unit includes 2 upright frames, 3 or 4 shelf levels. Add-On Unit
includes 1 upright frame, 3 or 4 shelf levels.18”D units store one
row of boxes; 36”D store two rows with access from both sides
and includes 5 additional supports per level. Easy assembly.
Cap.

Lbs./ STARTER ADD-ON
W” x D” x H” Level Levels Boxes Model Model
60 x 18 x 72 3800 3 28 SC613129 SC613179
60 x 36 x 72 3800 3 56 SC613130 SC613180
72 x 18 x 72 2750 3 35 SC613131 SC613181
72 x 36 x 72 2750 3 70 SC613132 SC613182
96 x 18 x 72 2150 3 49 SC613133 SC613183
96 x 36 x 72 2150 3 98 SC613134 SC613184
60 x 36 x 96 3800 4 72 SC613135 SC613185
72 x 36 x 96 2750 4 90 SC613136 SC613186
96 x 36 x 96 2150 4 112 SC613137 SC613187
Transfer File/Record Storage with
lid for letter and legal size records.
R u g g e d t s e t . s b l 0 0 2 u r r o c g e t a . d
Ships flat. Easy to set up. Sold in
package quantities of 20.
Model Record Type L” x W” x H” SC613132
SC336246B Letter/Legal 15 x 12 x 10
EXTRA HEAVY LOAD
Low Cost
RECORD STORAGE High Density
Offers quick and easy, tool free assembly for all your document storage needs. Storage
Heavy duty one-piece, box formed 13 gauge steel uprights allow easy beam
installation. 3 1 /4” x 4 1 /4” x 12 gauge welded base plates allow floor anchoring.
Beams feature a positive 6-way locking action that automatically secures beam
into place. Welded braces provide maximum rigidity and stability. Long lasting
epoxy finish. Dust free wire mesh decking allows light and sprinkler penetration.
Stores document boxes on front and back for two rows of storage and allows
access from either side. Rack is available with 200 lb. test Corrugated or
transparent high density Polyethylene boxes. Easy assembly.
Shelf STARTER ADD-ON
W”x D”x H” Cap lbs. Levels Boxes Model Model
15”L x 12”W x 10”H CORRUGATED BOXES INCLUDED
48 x 36 x 96 6590 4 48 SC258192 SC258207
96 x 36 x 96 3230 4 112 SC258193 SC258208
120 x 36 x 96 5630 4 144 SC258194 SC258209 SC336246C
48 x 42 x 120 6590 5 60 SC258195 SC258210
96 x 42 x 120 3230 5 140 SC258196 SC258211
120 x 42 x 120 5630 5 180 SC258197 SC258212
24”L x 12”W x 10”H CORRUGATED BOXES INCLUDED
48 x 48 x 96 6590 4 48 SC258198 SC258213
96 x 48 x 96 3230 4 112 SC258199 SC258214
120 x 48 x 96 5630 4 144 SC258200 SC258215
48 x 48 x 120 6590 5 60 SC258201 SC258216
96 x 48 x 120 3230 5 140 SC258202 SC258217
120 x 48 x 120 5630 5 180 SC258203 SC258218
21 1 /2”L x 15”W x 12 1 /2”H POLYETHYLENE BOXES INCLUDED
48 x 48 x 96 6590 4 48 SC258204 SC258219
96 x 48 x 96 3230 4 96 SC258205 SC258220 SC506151B
120 x 48 x 96 5630 4 120 SC258206 SC258221
TRANSFER FILE/RECORD STORAGE with lid for letter and POLYETHYLENE FILE BOX with hinged lid.
legal size records. Rugged 200 lbs. test corrugated. Ships Includes metal hanging file folder rails. 65
flat. Easy to set up. lb. capacity alone. 260 lb. capacity stacked.
Sold in package quantity of 6.
Model Record Type L” x W” x H” Model L” x W” x H” SC258196
SC336246C Letter/Legal 15 x 12 x 10 SC506151B 21 1 /2 x 15 x 12 1 /2
35
