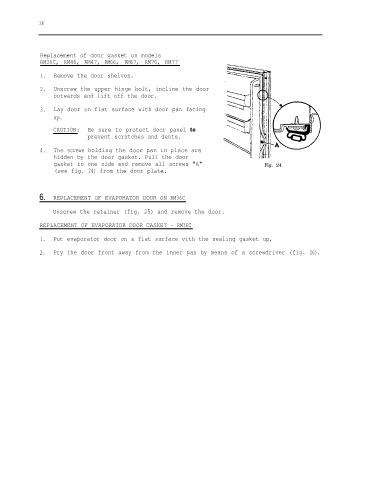

16

Replacement of door gasket on models
RM36C, RM46, RM47, RM66, RM67, RM76, RM77

1. Remove the door shelves.

2. Unscrew the upper hinge bolt, incline the door
outwards and lift off the door.

3. Lay door on flat surface with door pan facing
up.
CAUTION: Be sure to protect door panel to
prevent scratches and dents.

4. The screws holding the door pan in place are
hidden by the door gasket. Pull the door
gasket to one side and remove all screws "A" Fig. 24
(see fig. 24) from the door plate.

6. REPLACEMENT OF EVAPORATOR DOOR ON RM36C

Unscrew the retainer (fig. 25) and remove the door.
REPLACEMENT OF EVAPORATOR DOOR CASKET - RM36C

1. Put evaporator door on a flat surface vith the sealing gasket up,

2. Pry the door front away from the inner pan by means of a screwdriver (fig. 26).
