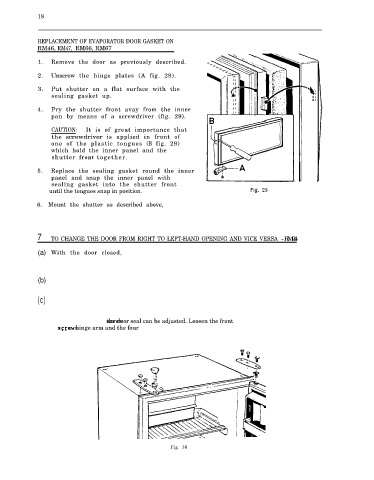

REPLACEMENT OF EVAPORATOR DOOR GASKET ON
RM46, RM47, RM66, RM67

1. Remove the door as previously described.

2. Unscrew the hinge plates (A fig. 29).

3. Put shutter on a flat surface with the
sealing gasket up.

4. Pry the shutter front avay from the inner
pan by means of a screwdriver (fig. 29).

CAUTION: It is of great importance that
the screwdriver is applied in front of
one of the plastic tongues (B fig. 29)
which hold the inner panel and the
shutter front together.

5. Replace the sealing gasket round the inner
panel and snap the inner panel with
sealing gasket into the shutter front
until the tongues snap in position.

6. Mount the shutter as described above,

7 TO CHANGE THE DOOR FROM RIGHT TO LEFT-HAND OPENING AND VICE VERSA - RM24

(a) With the door closed,

(b)

(c)

the door seal can be adjusted. Loosen the front screv
upper hinge arm and the four

Fig. 30
