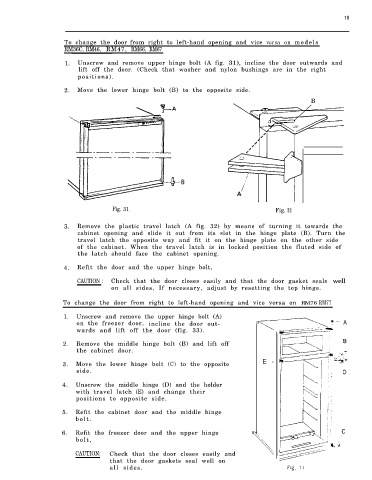

19

To change the door from right to left-hand opening and vice versa on m o d e l s
RM36C, RM46, RM47, RM66, RM67

1. Unscrew and remove upper hinge bolt (A fig. 31), incline the door outwards and
lift off the door. (Check that washer and nylon bushings are in the right
positions).

2. Move the lower hinge bolt (B) to the opposite side.
B

Fig. 31 Fig. 32

3. Remove the plastic travel latch (A fig. 32) by means of turning it towards the
cabinet opening and slide it out from its slot in the hinge plate (B). Turn the
travel latch the opposite way and fit it on the hinge plate on the other side
of the cabinet. When the travel latch is in locked position the fluted side of
the latch should face the cabinet opening.

4. Refit the door and the upper hinge bolt,

CAUTION : Check that the door closes easily and that the door gasket seals well
on all sides, If necessary, adjust by resetting the top hinge.

To change the door from right to left-hand opening and vice versa on RM76 RM77

1. Unscrew and remove the upper hinge bolt (A)
on the freezer door, incline the door out- F A
wards and lift off the door (fig. 33).
2. Remove the middle hinge bolt (B) and lift off
the cabinet door.

3. Move the lower hinge bolt (C) to the opposite E -
side.

4. Unscrew the middle hinge (D) and the holder
with travel latch (E) and change their
positions to opposite side.

5. Refit the cabinet door and the middle hinge
bolt.

6. Refit the freezer door and the upper hinge s
bolt,

CAUTION: Check that the door closes easily and
that the door gaskets seal well on
all sides.
