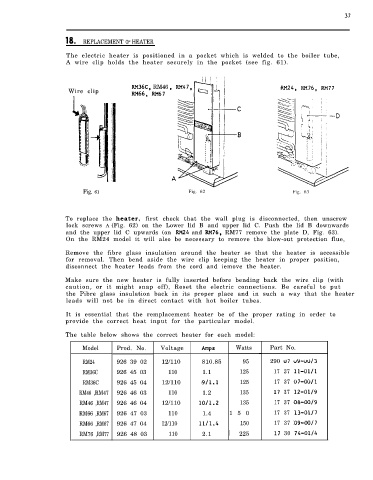

REPLACEMENT OF HEATER

The electric heater is positioned in a pocket which is welded to the boiler tube,
A wire clip holds the heater securely in the pocket (see fig. 61).

RM46
Wire clip

Fig. 61 Fig. 62 Fig. 63

To replace the heater, first check that the wall plug is disconnected, then unscrew
lock screws A (Fig. 62) on the Lower lid B and upper lid C. Push the lid B downwards
and the upper lid C upwards (on and RM77 remove the plate D, Fig. 63).
On the RM24 model it will also be necessary to remove the blow-out protection flue,

Remove the fibre glass insulation around the heater so that the heater is accessible
for removal. Then bend aside the wire clip keeping the heater in proper position,
disconnect the heater leads from the cord and iemove the heater.

Make sure the new heater is fully inserted before bending back the wire clip (with
caution, or it might snap off), Reset the electric connections. Be careful to put
the Pibre glass insulation back in its proper place and in such a way that the heater
leads will not be in direct contact with hot boiler tubes.
It is essential that the remplacement heater be of the proper rating in order to
provide the correct heat input for the particular model.

The table below shows the correct heater for each model:

Model Prod. No. Voltage Watts Part No.
RM24 926 39 02 12/110 810.85 95 290
RM36C 926 45 03 110 1.1 125 17 37

RM36C 926 45 04 12/110 125 17 37
RM46 ,RM47 926 46 03 110 1.2 135 37
RM46 ,RM47 926 46 04 12/110 135 17 37
RM66 ,RM67 926 47 03 110 1.4 1 5 0 17 37
RM66 ,RM67 926 47 04 12/110 150 17 37
RM76 ,RM77 926 48 03 110 2.1 225 30
