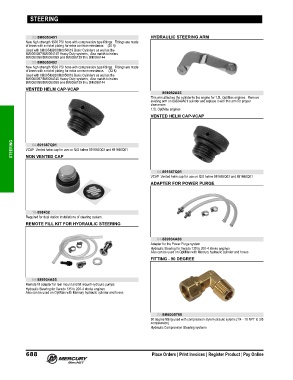

Page 701 - US ACCESSORIES GUIDE (2019)

STEERING

32-8M0053491 HYDRAULIC STEERING ARM
New high strength 1500 PSI hose with compression type fittings. Fittings are made
of brass with a nickel plating for extra corrision resistance. (30 ft)
Used with 8M0054993/8M0056619 Basic Cylinders as well as the
8M0050097/8M0054145 Heavy Duty systems, Also match to helms
8M0050098/8M0050099 and 8M0056139 thru 8M0056144
32-8M0053492
New high strength 1500 PSI hose with compression type fittings. Fittings are made
of brass with a nickel plating for extra corrision resistance. (32 ft)
Used with 8M0054993/8M0056619 Basic Cylinders as well as the
8M0050097/8M0054145 Heavy Duty systems, Also match to helms
8M0050098/8M0050099 and 8M0056139 thru 8M0056144
VENTED HELM CAP-VCAP
898082A03
This arm attaches the cylinder to the engine for 1.5L OptiMax engines. Remove
existing arm on 898349A01 cylinder and replace it with this arm for proper
clearances
1.5L OptiMax engines
VENTED HELM CAP-VCAP

STEERING VCAP Vented helm cap for use on Q/S helms 891665Q02 and 891666Q01
64-891667Q01

NON VENTED CAP

64-891667Q01
VCAP Vented helm cap for use on Q/S helms 891665Q02 and 891666Q01
ADAPTER FOR POWER PURGE

19-898432
Required for dual station installations of steering system.
REMOTE FILL KIT FOR HYDRAULIC STEERING

64-889934A06
Adapter for the Power Purge system
Hydraulic Steering for Verado 135 to 200‑4 stroke engines
Also can be used on OptiMax with Mercury hydraulic cylinder and hoses
FITTING - 90 DEGREE

64-889934A05
Remote fill adapter for rear mount and tilt mount Hydraulic pumps
Hydraulic Steering for Verado 135 to 200‑4 stroke engines
Also can be used on OptiMax with Mercury hydraulic cylinder and hoses

22-8M6000760
90 degree fitting used with compression style hydraulic sytems (1/4 ‑ 18 NPT to 3/8
compression)
Hydraulic Compression Steering systems
